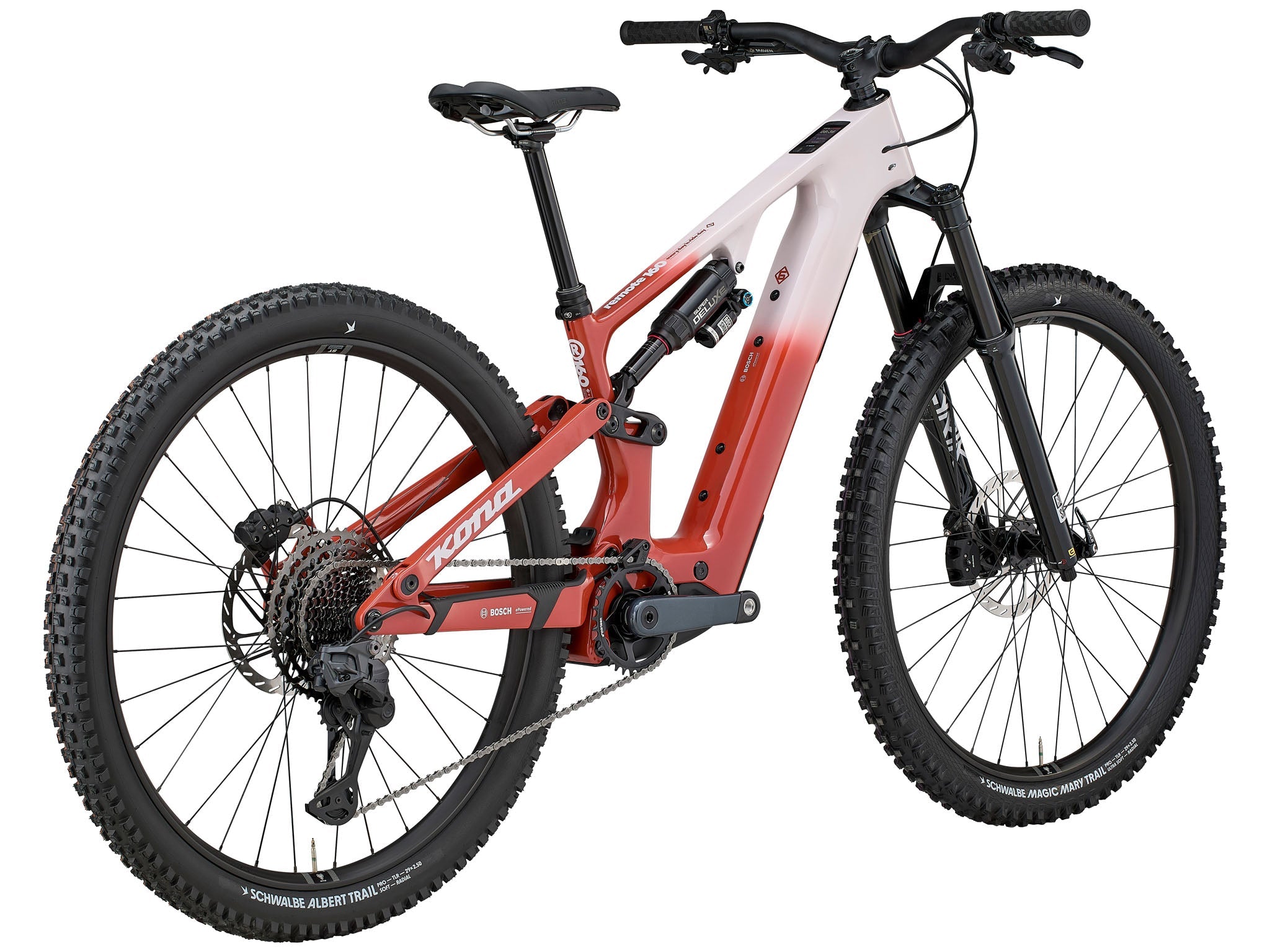

Remote 160 CR
Not finding what you want here?
Contact your local Kona Dealer.
Looking for more Technical Information?
Click Here
Every now & then a bike comes along that just drops your jaw. Your friends’ eyes widen when they see you on it. You can’t quite explain it, but you feel instantly connected to this new shred mate. What is it about this bike? The balance? The way it stays planted while devouring everything in its path? The unmatched responsiveness and pop over roots, rocks, and lips? Or that audible BRAAP in corners? Maybe it’s the confidence it builds—fast—as you zip up climbs. It’s definitely all of the above. Careful now, a bike like this might tempt you to throw caution to the wind: ride everything, do nothing else. Eat, sleep, ride, repeat.

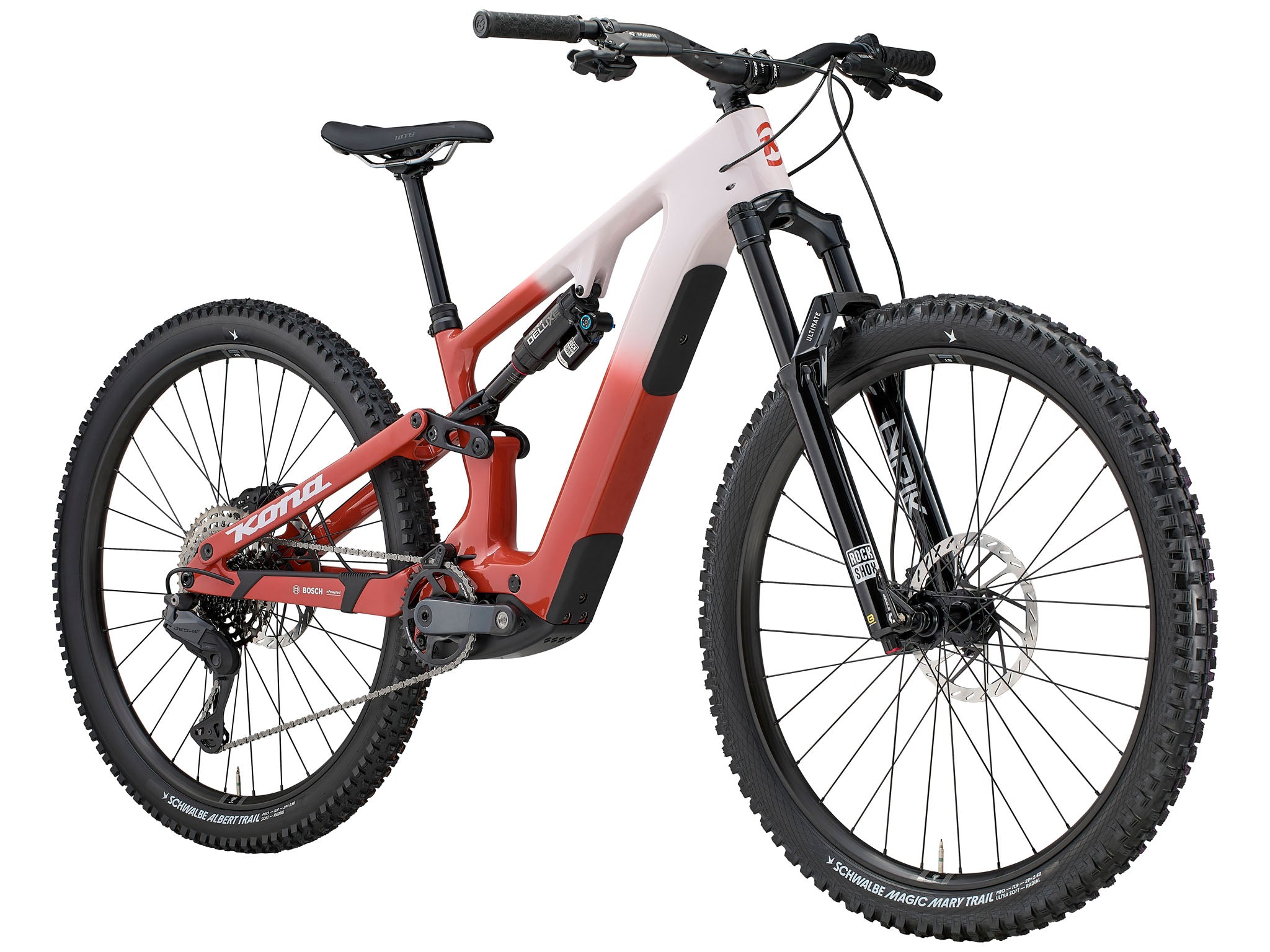

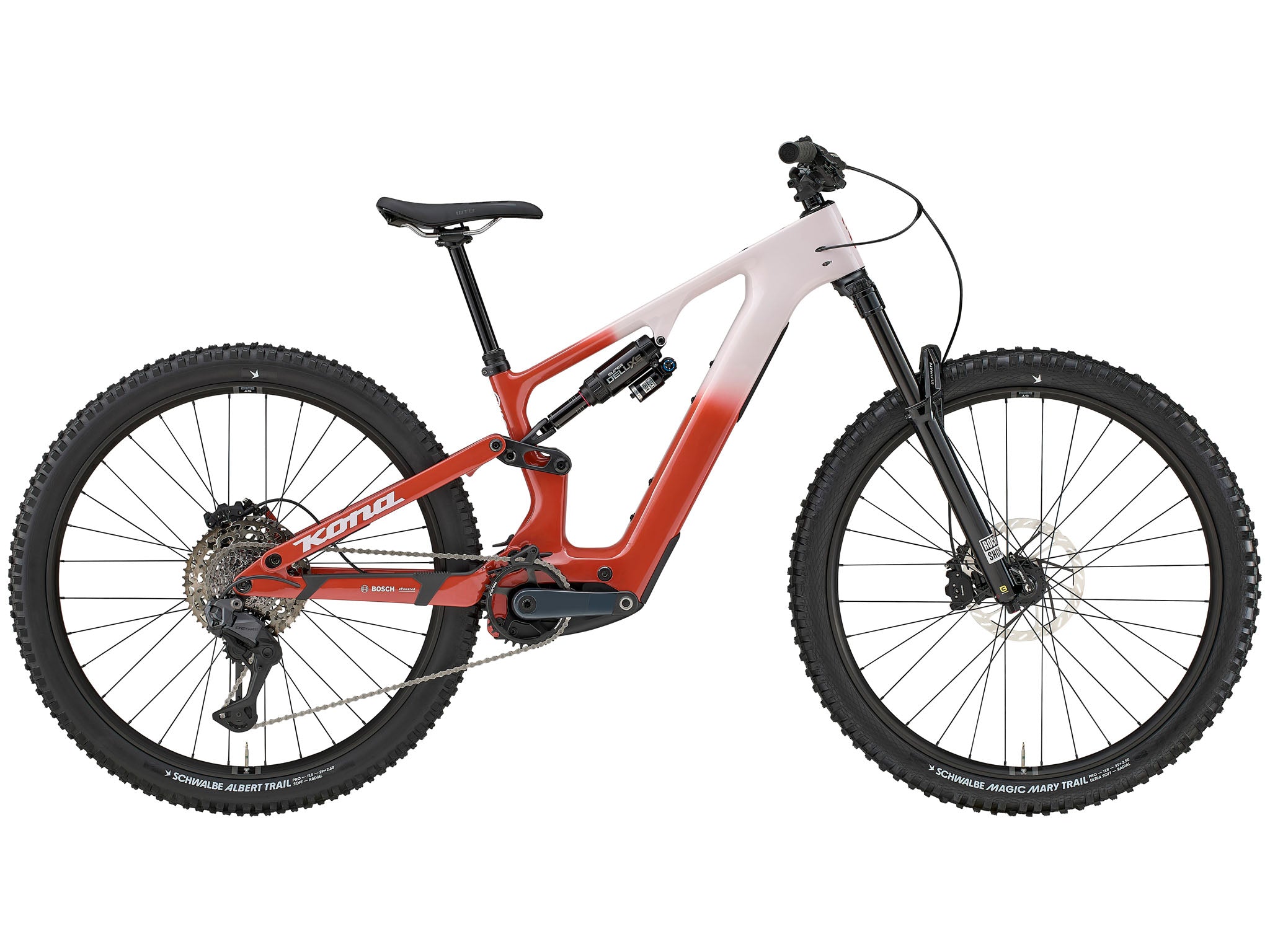

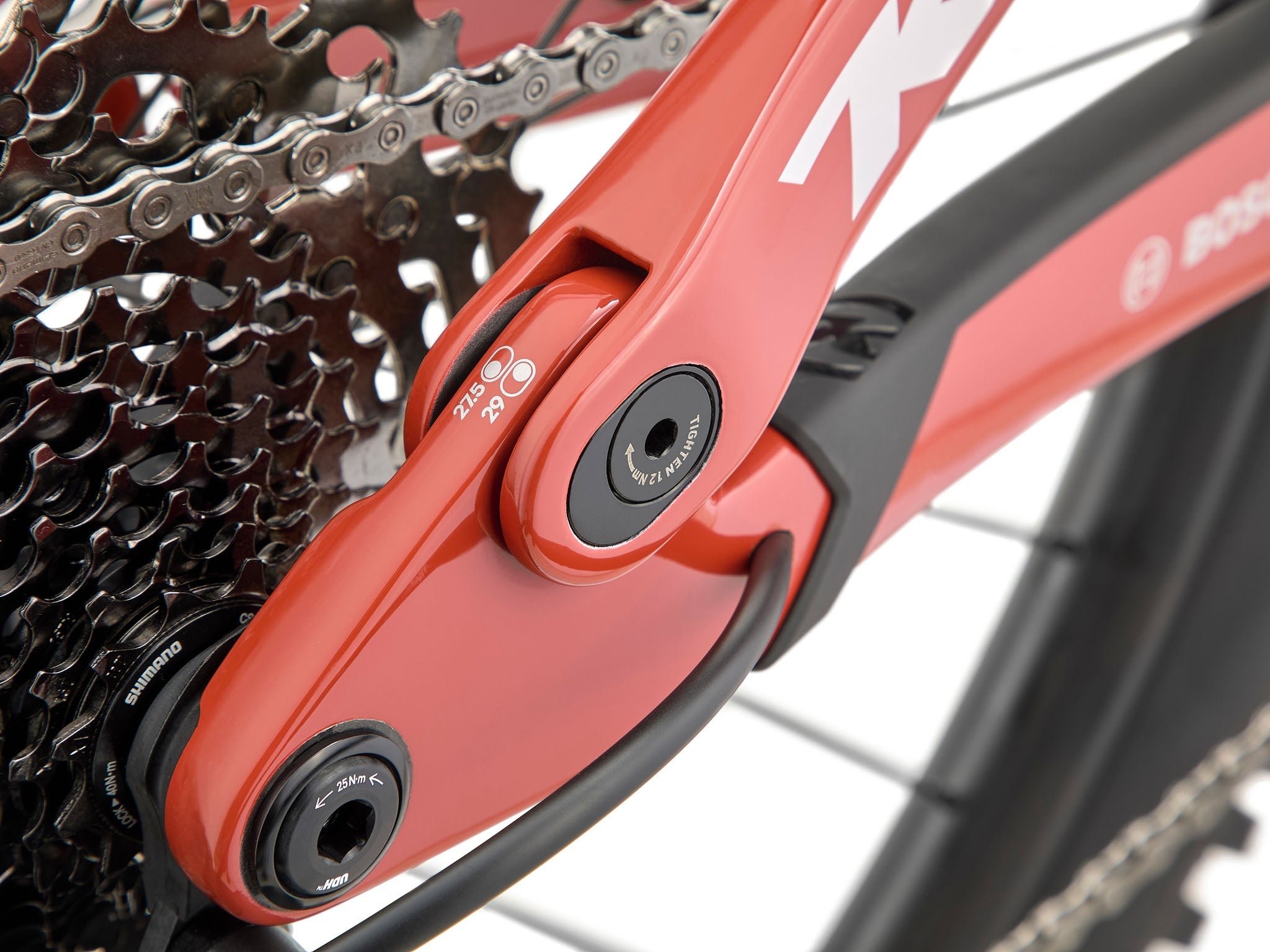

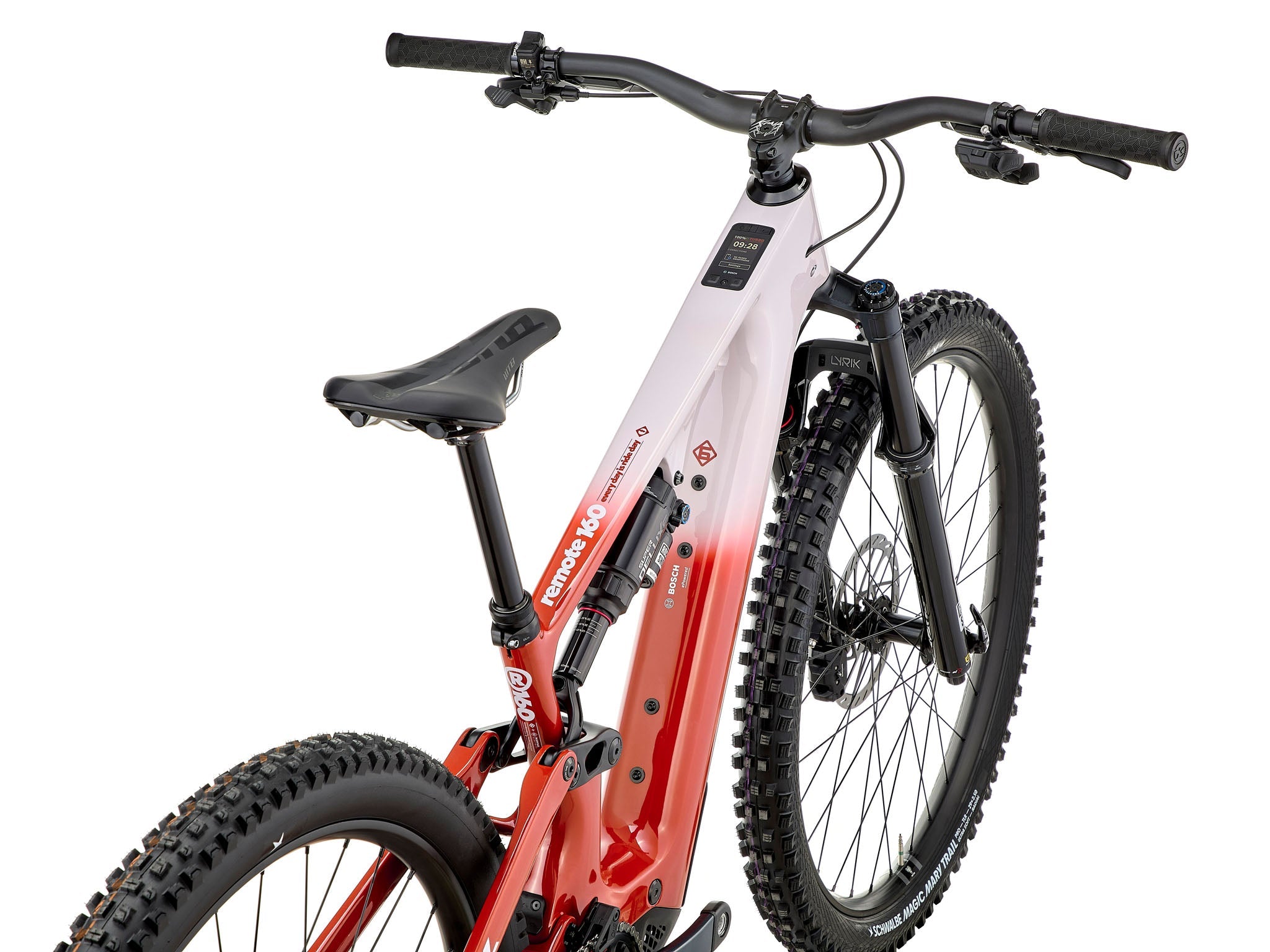

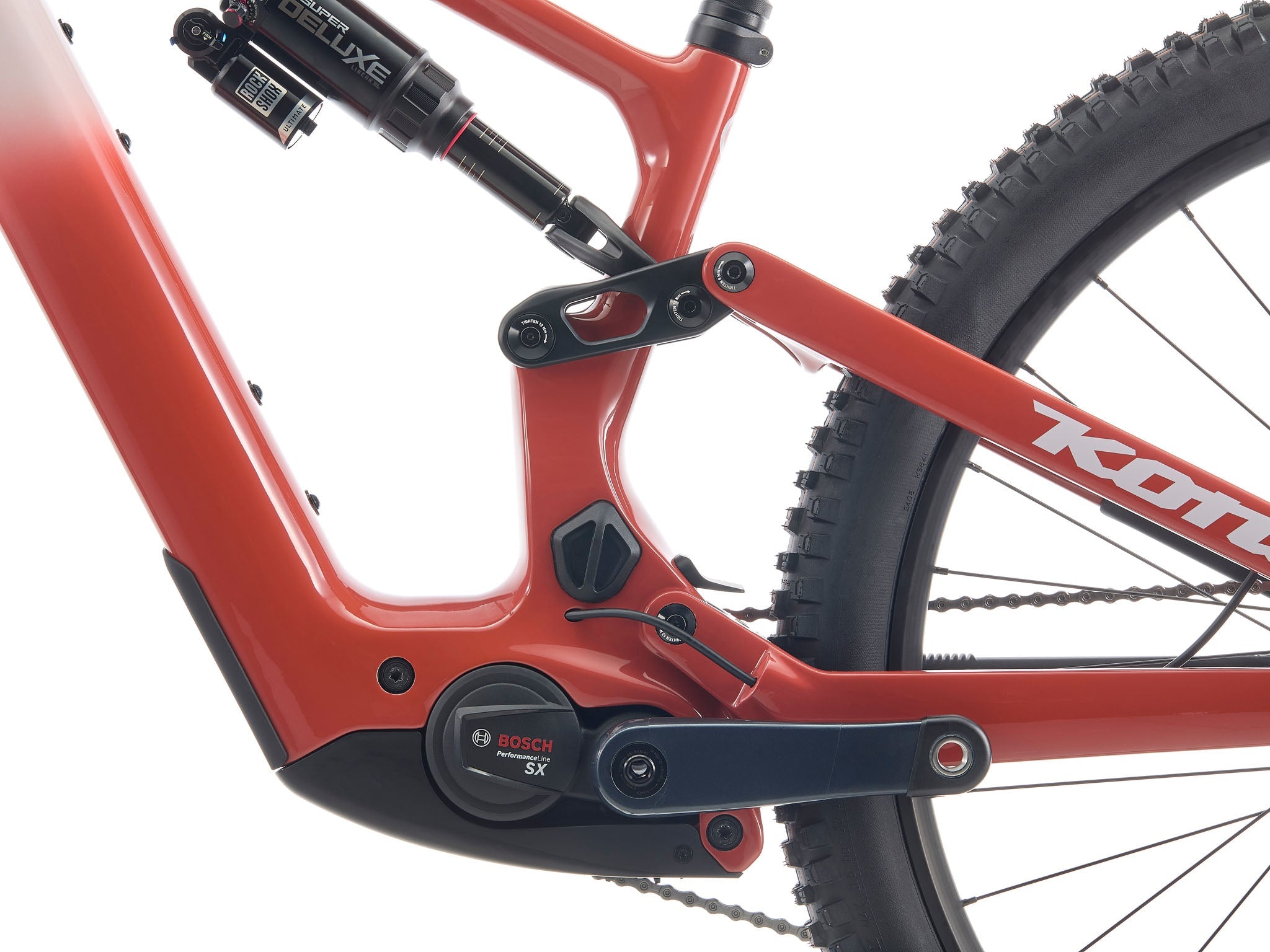

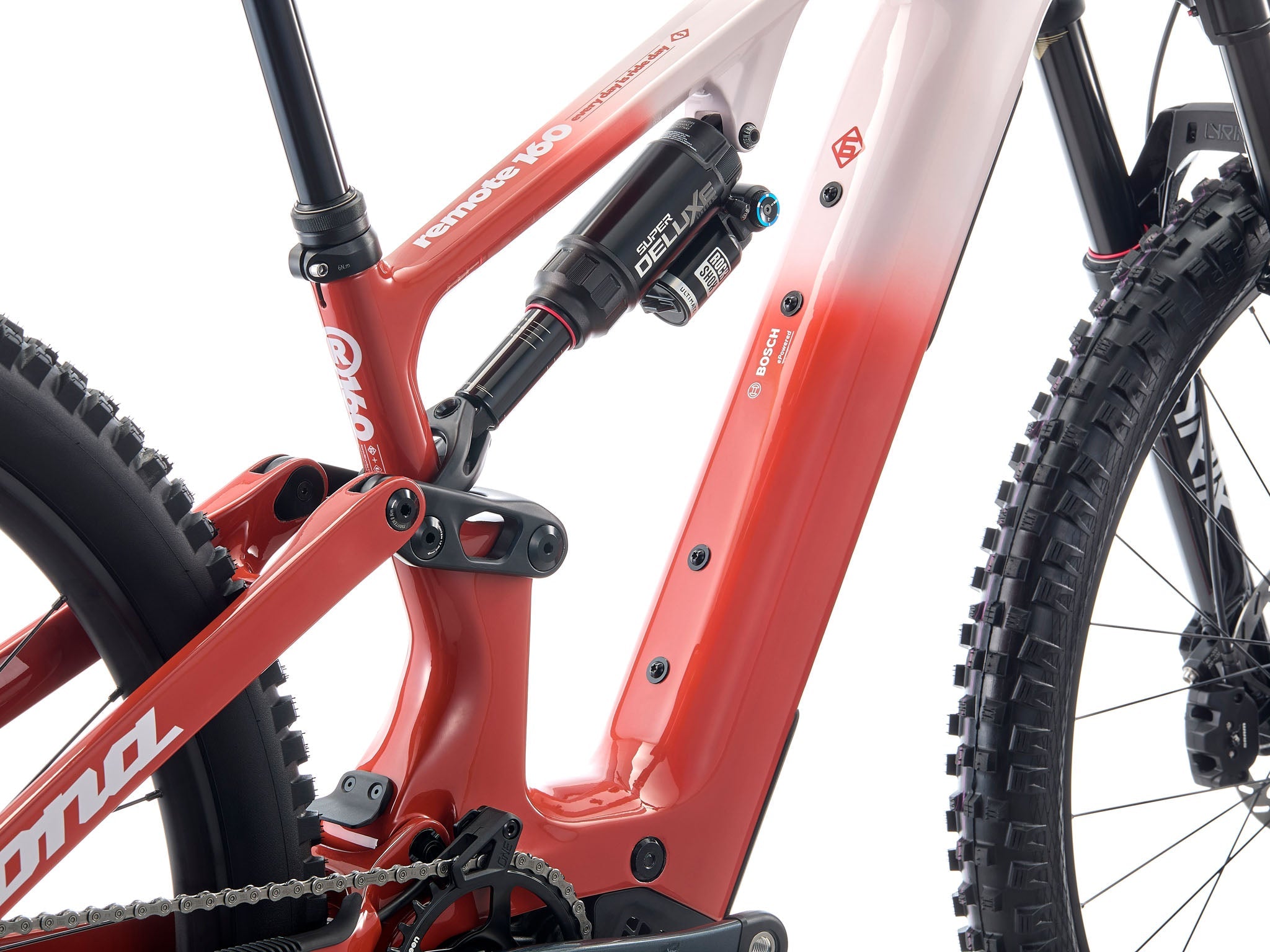

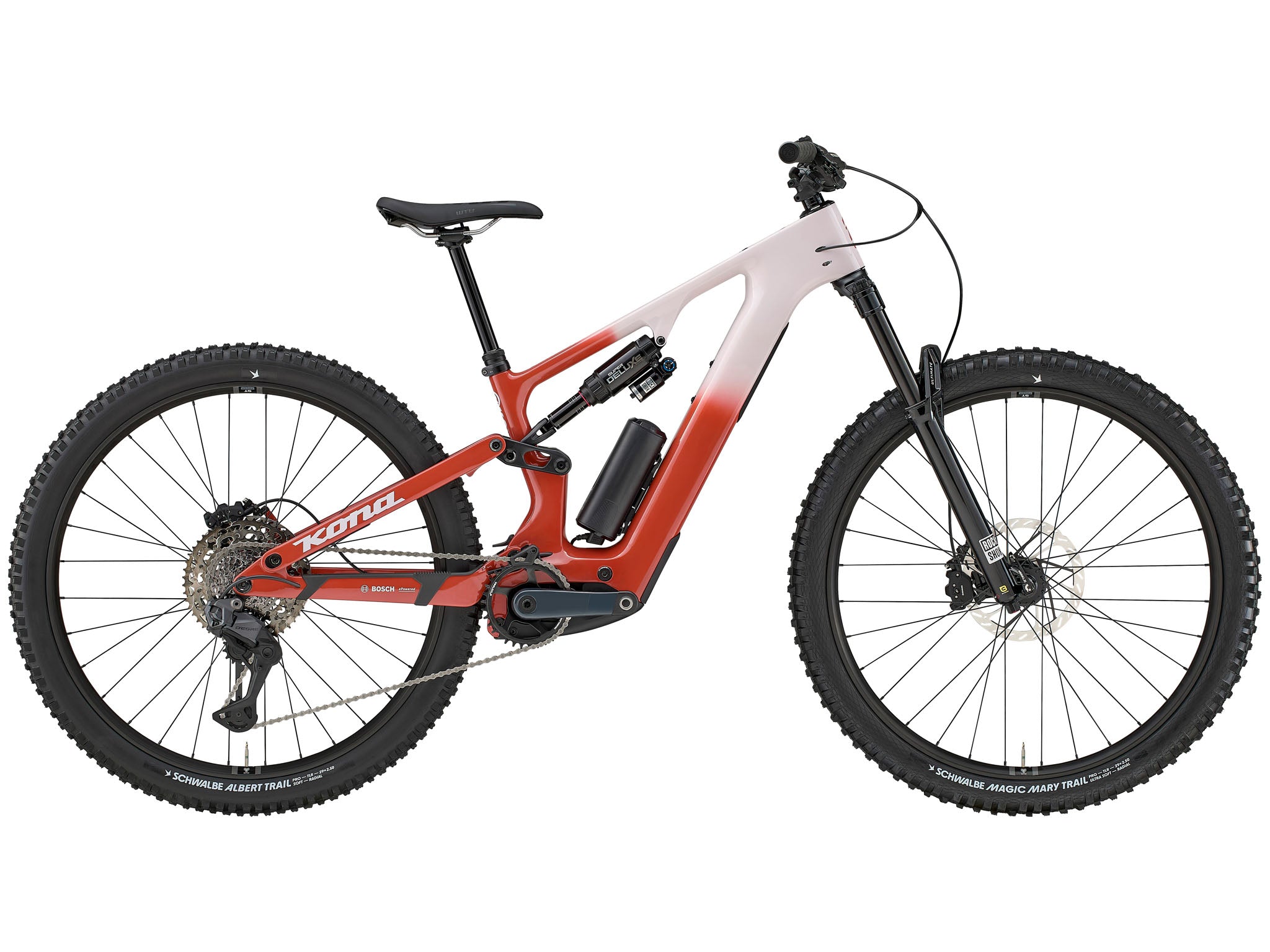

The Remote 160 CR is that bike. It rides like your carbon Process 153—with an engine that kicks like a mechanical horse. Its sleek carbon frame features a purposefully low center of gravity. The Bosch SX system is silky smooth, and the PowerMore range extender hugs the motor to keep weight balanced. The SX system adapts to your ride, while the flip chip lets you go MX today or match wheel sizes tomorrow. Saddle up. Ride it once—good luck going back.
SPECS & GEOMETRY
SPECIFICATIONS
| FRAME | Kona Carbon 160mm Travel |
| SIZES | S, M, L, XL |

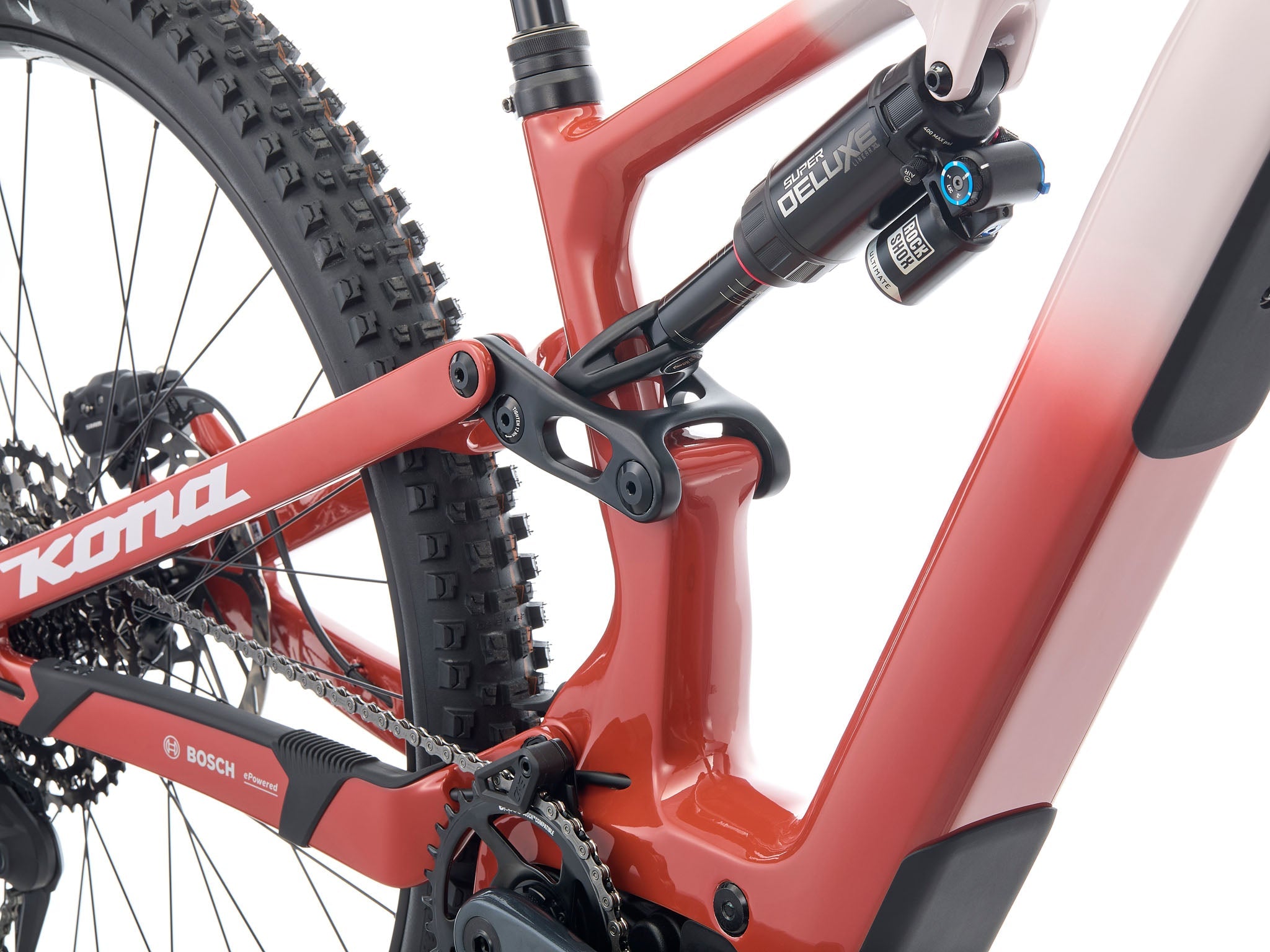

| REAR SHOCK | Rockshox Super Deluxe Ultimate 230X60 |
| FORK | RockShox Lyrik Ultimate 160mm 29" |
| CRANKSET | Prowheel Carbon 155mm 34t |
| BOTTOM BRACKET | n/a |
| PEDALS | n/a |
| CHAIN | Shimano CUES LG500 |
| CASSETTE | Shimano 11-50t 11spd |
| CHAINGUIDE | One Up |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | Shimano Deore Di2 |
| SHIFTER | Shimano Deore Di2 Wireless |
| BRAKE CALIPERS | SRAM Maven Base |
| FRONT BRAKE ROTOR | SRAM HS2 200mm 6 bolt |
| REAR BRAKE ROTOR | SRAM HS2 200mm 6 bolt |
| BRAKE LEVERS | SRAM Maven Base |
| HEADSET | FSA NO.55R/57 ZS56/ZS56 |

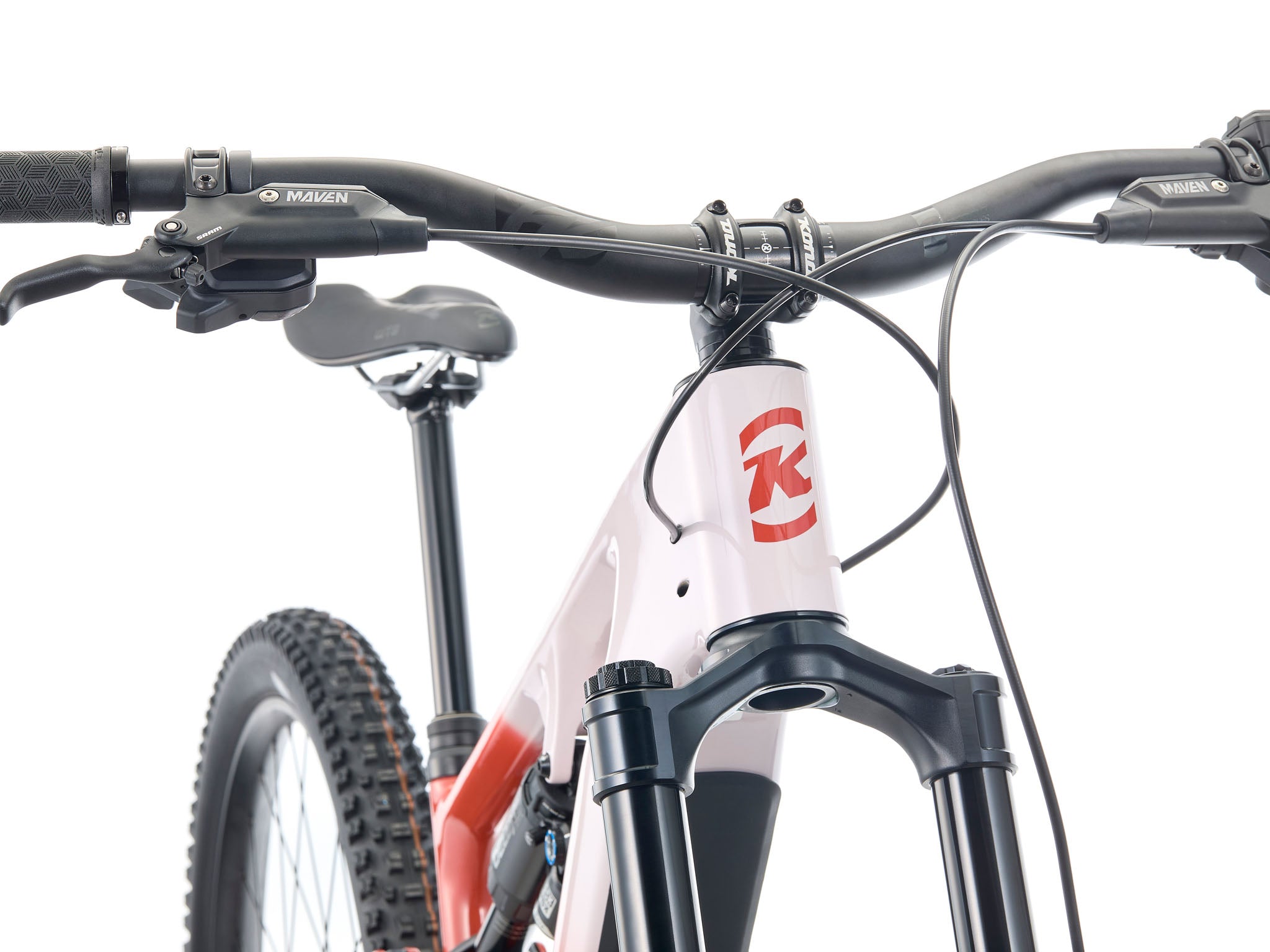

| HANDLEBAR | Kona Back 10º / Up 5º / Rise 38mm / Width S 760mm / M 780mm / L-XL 800mm |
| STEM | Kona 35mm / Rise 0º / Length 40mm |
| SEATPOST | TranzX Dropper +RAD Internal 31.6mm / Length S 150mm / M 170mm / L 200mm / XL 230mm |
| SEAT CLAMP | Kona Clamp 34.9mm |
| GRIPS | Key Grip Lock-on Black |
| SADDLE | WTB Volt SL Fusion |
| FRONT HUB | Formula 15x110mm |
| REAR HUB | Formula 12x148mm HG |
| SPOKES | Stainless 2.0mm Black |
| RIMS | WTB ST Tough i30 |
| FRONT TIRE | Schwalbe Magic Mary 29x2.5" Trail Pro Ultra Soft Radial |
| REAR TIRE | Schwalbe Albert 29x2.5" (Size S- 27.5x2.5") Trail Pro Soft Radial |
| DRIVE UNIT | Bosch Performance Line SX 20mph/32kmh |
| BATTERY | Bosch PowerTube 400 / PowerMore 250 |

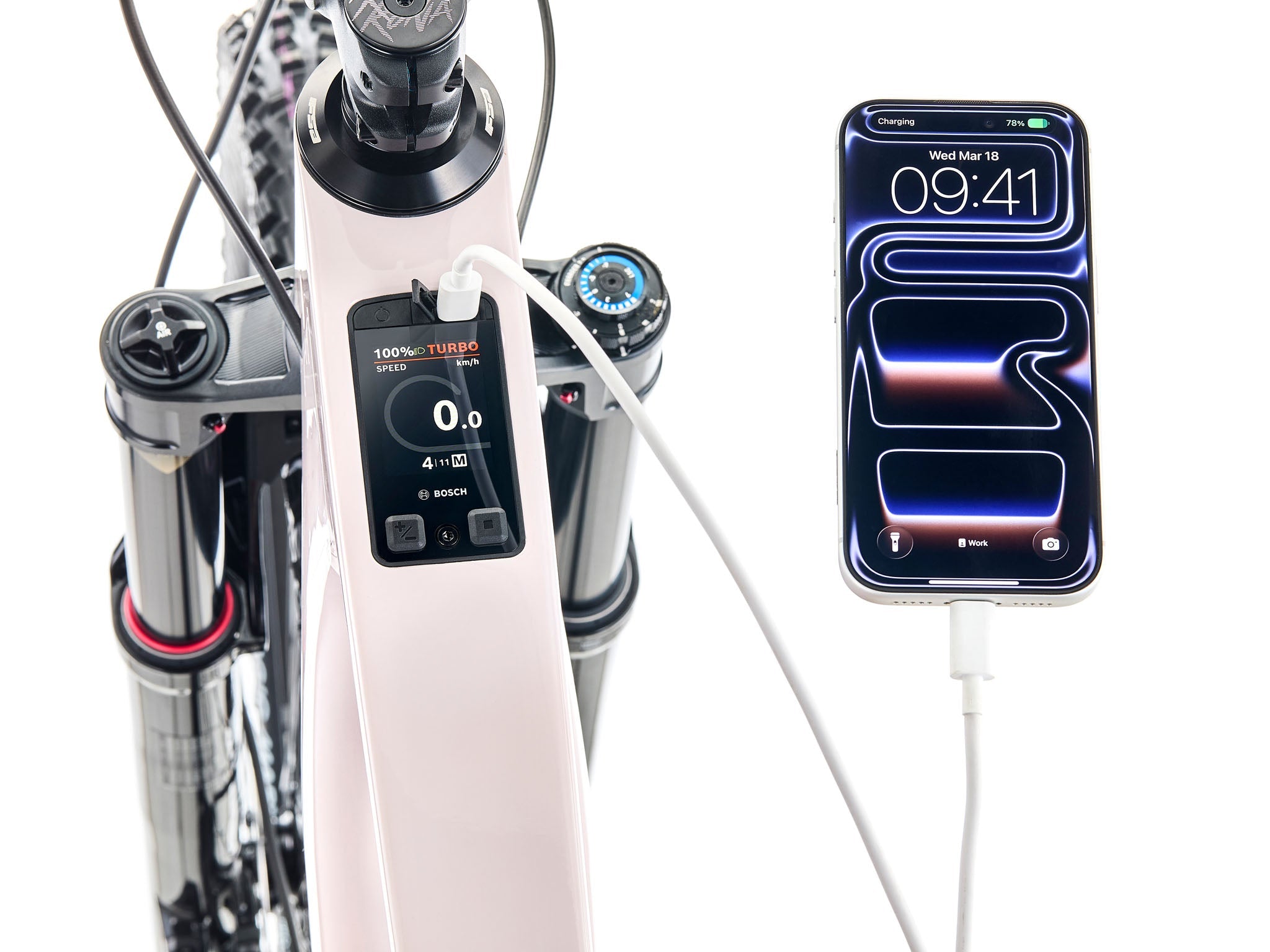

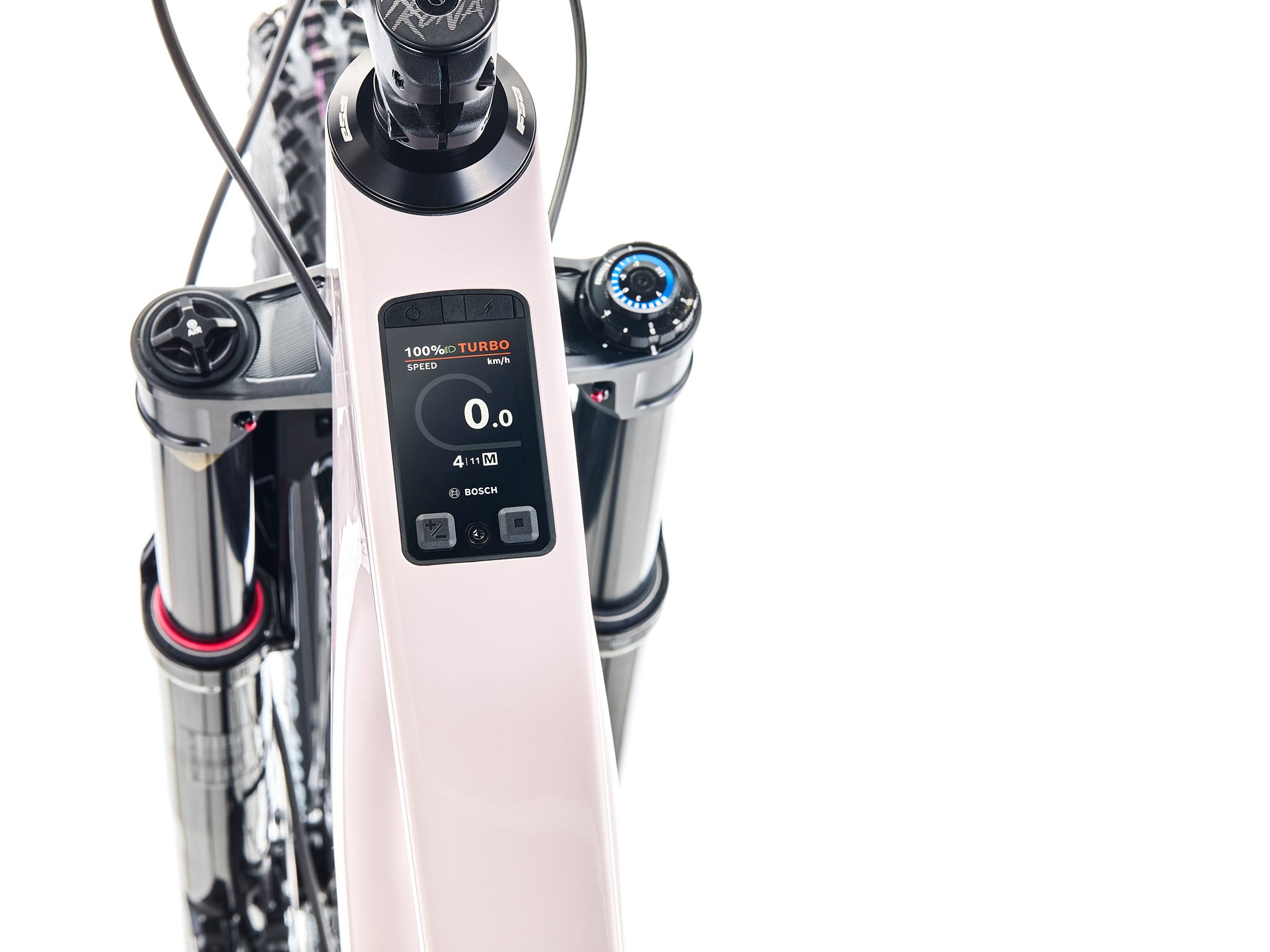

| DISPLAY | Kiox 400c |
| CHARGER | Bosch 4A (110V) |
| BATTERY LOCK | n/a |
| PAINT COLOR | Gloss Burnt Orange & Clay Fade w/ Clay & Burnt Orange Decals |
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 380 | 380 | 420 | 450 |
| 2 | TT Length | 574 | 599 | 628 | 667 |
| 3 | Reach | 430 | 455 | 480 | 515 |
| 4 | Stack | 627 | 627 | 637 | 648 |
| 5 | Standover | 754 | 761 | 762 | 765 |
| 6 | HT Angle | 64 | 64 | 64 | 64 |
| 7 | HT Length | 112 | 112 | 123 | 135 |
| 8 | ST Angle | 77 | 77 | 76.9 | 76.8 |
| 9 | CS Length | 445 | 445 | 445 | 445 |
| 10 | BB Drop | 15 | 25 | 25 | 25 |
| 11 | BB Height | 350 | 350 | 350 | 350 |
| 12 | Wheelbase | 1217 | 1242 | 1272 | 1312 |
| 13 | Front Center | 773 | 798 | 828 | 868 |
| 14 | Fork Length | 576 | 576 | 576 | 576 |
| 15 | Fork Offset | 44 | 44 | 44 | 44 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
Call2Recycle FAQ
Does Kona participate in any ebike battery recycling programs?
Yep! Kona has partnered with Call2Recycle to take care of all battery recycling at the end of their life.
Whatis Call2Recycle Canada?
Call2Recycle is Canada’s largestconsumer battery collection and recycling organization, managing a network of thousands of public collection sites through “Recycle Your Batteries, Canada!”, its household and e-bike battery collection and recycling program. Call2recycle operates official battery recycling programs in seven Canadian provinces (as of September 2024) and manages voluntary programs in all other provinces and territories. Since its inception in 1997, Call2Recycle has diverted over 50 million kilograms of batteries from Canadian landfills.
Are there any fees associated with this service?
Yes, the structure is set up so that the eco fee is passed along the chain to the end consumer. These fees all ensure the program runs effectively. Here’s how it works:
- As the importer of record, Kona will remit the fees to Call2Recycle Canada. It’s $10 per electric bike or aftermarket battery.
- Kona will pass the eco fee to the dealer when e-bikes or batteries are shipped.
- The consumer buying the bike or battery will pay the dealer the fee.
- This fee ensures that when your battery reaches the end of its life, it will be safely recycled for no additional fee.
Do I also need to pay a fee when the battery is ready to be recycled?
Nope. The fee you paid at the time of purchase is the only fee you’ll ever need to pay to recycle your battery.
Will my dealer take the battery when I can no longer use it?
This will vary from dealer to dealer as it’s up to them if they want to sign up to be a battery collection site.
I’m a dealer and want to become a collection site. How do I sign up?
Great! The more collection sites the better! It costs nothing to become a collection site. Find out more info here.
I’m a consumer and my local dealer isn’t a collection site. Where can I recycle my batteries?
We will do our best to encourage our dealer network to participate in the program, but if they haven’t had time or choose not to participate, please use the locator to find your nearest location.
Why should I recycle my batteries?
Battery recycling is essential to help protect our environment and better manage our waste.
Used batteries should NEVER be thrown away in the garbage or even in the recycling bin. They include metals and chemicals that can be harmful to our environment if we just throw them away. When discarded batteries end up in landfills, they can harm the environment and worsen Canada’s Greenhouse Gas (GHG) emissions.
A “dead” battery still holds a residual charge and poses a safety risk if not disposed of properly.
Batteries that are recycled properly are sent for processing, where valuable materials like metal alloys are retrieved and used to produce new products like silverware,
bikes and golf clubs – contributing to a circular economy.
Where can I find more information aboutCall2Recycle and e-mobility batteries?
Right here!
