Remote 160
Not finding what you want here?
Contact your local Kona Dealer.

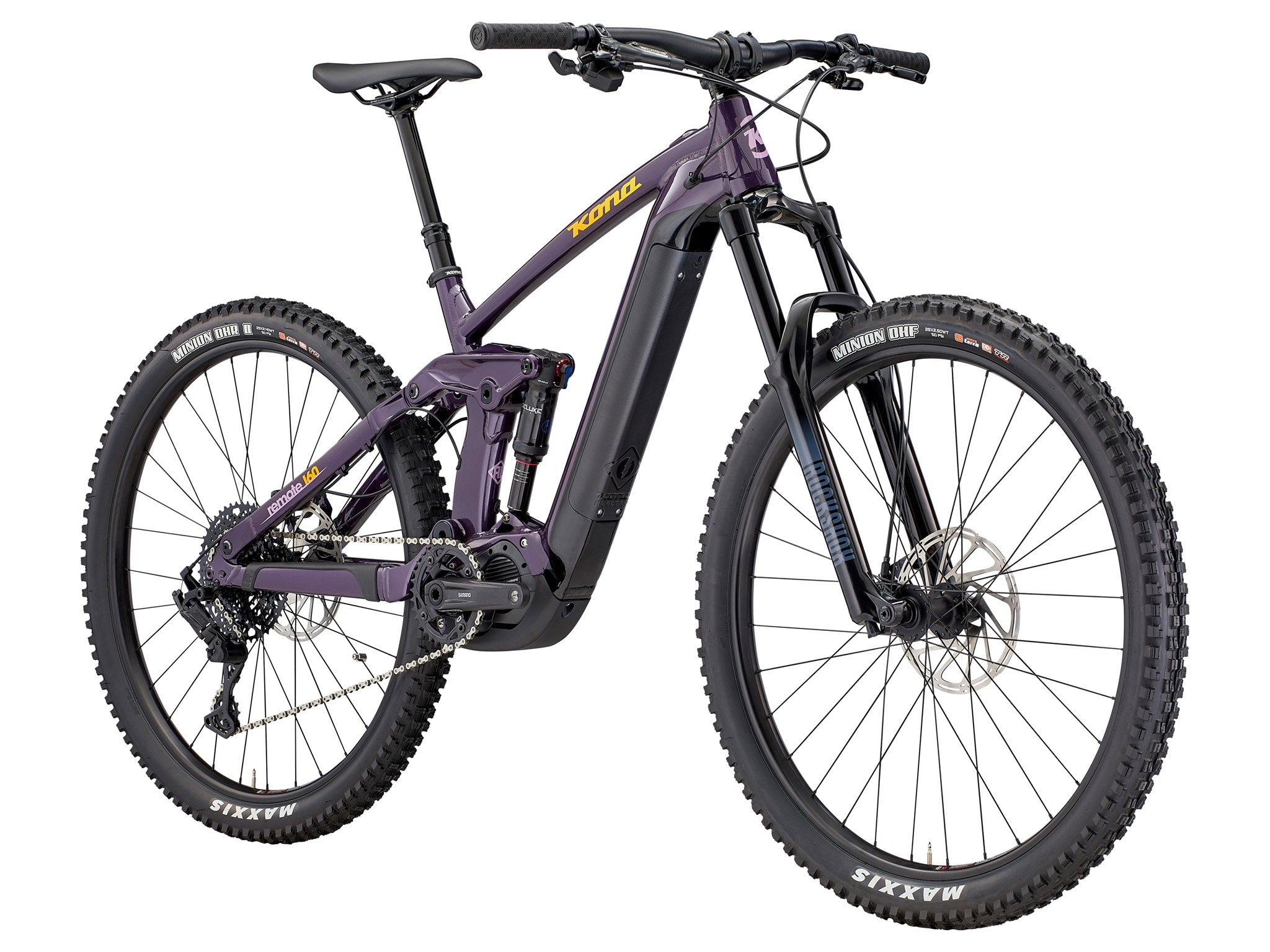

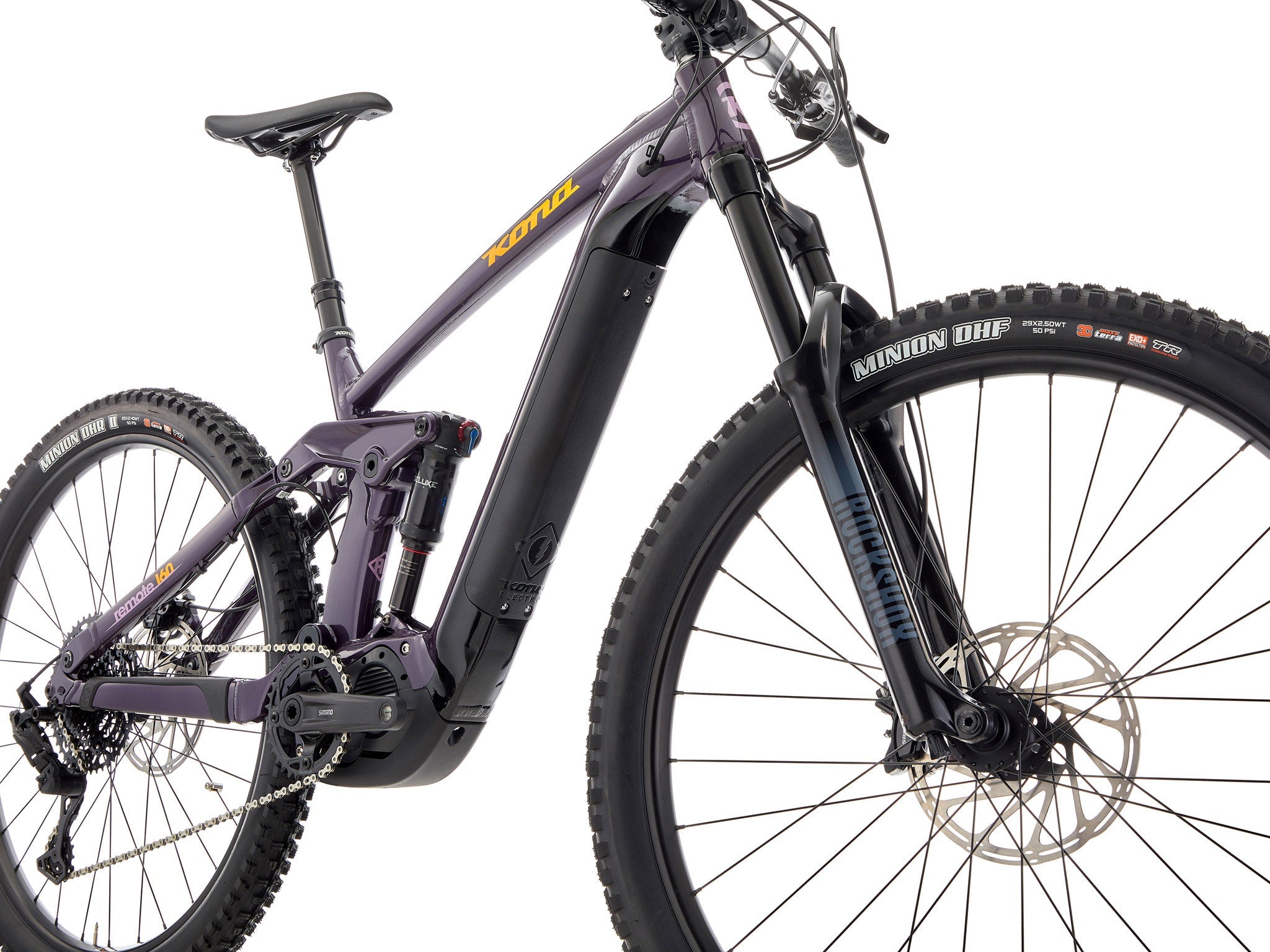

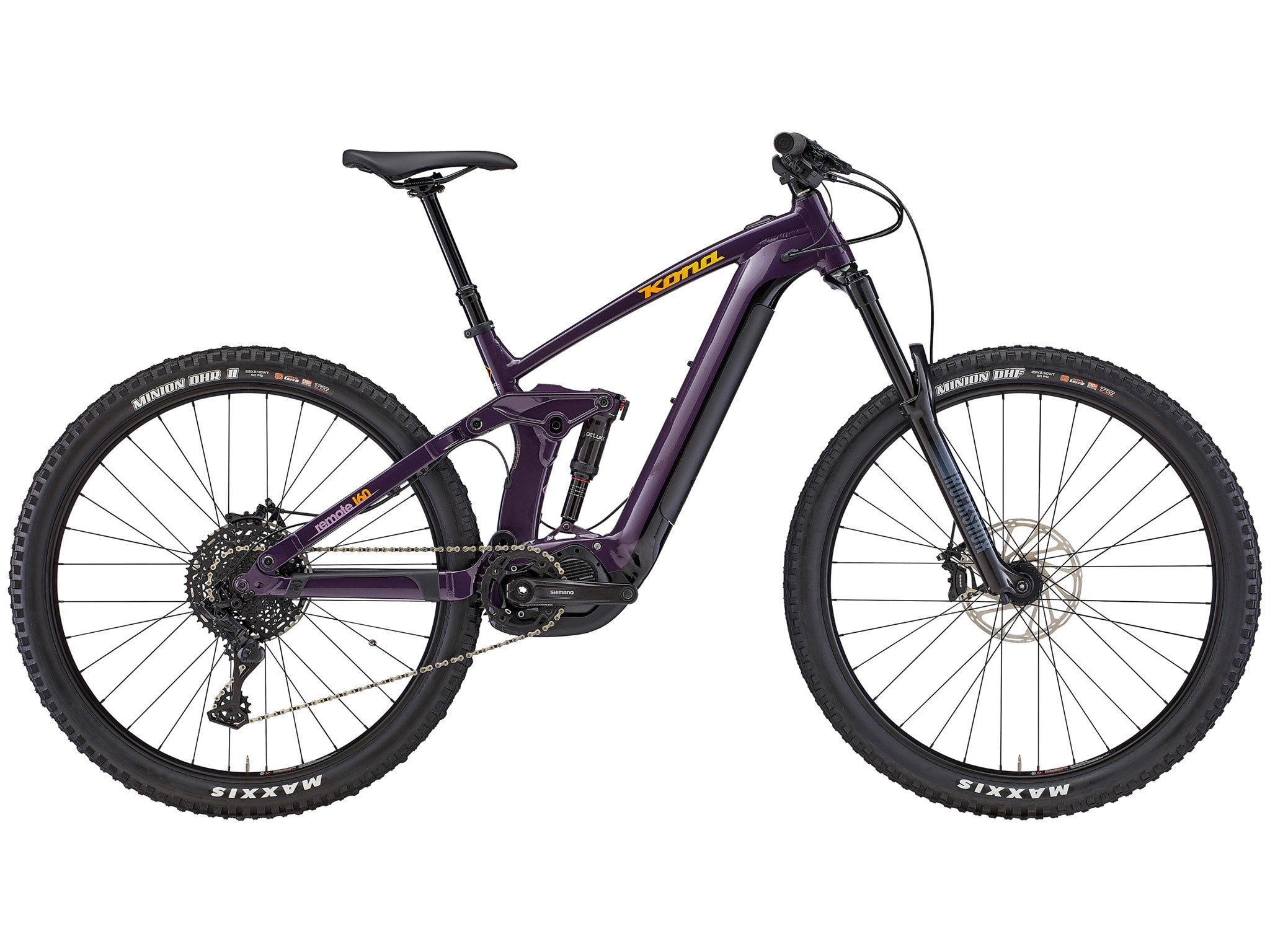

The Remote 160 brings the joy of a longer travel of an e-MTB to the masses. A 29” wheeled ripper, this bike brings all the fun of a 160mm travel e-MTB in a more affordable package. A Shimano motor and battery provide a customizable amount of pedal-assist ensuring you have the exact amount of power you want when you want it. Ultra-powerful hydraulic disc brakes and 200mm rotors front and rear provide controlled stopping even when you’re hauling ass on steeper terrain. No matter what your reasoning, the Remote 160 will have you laughing up and down the trails.
SPECS & GEOMETRY
SPECIFICATIONS
| Frame Material | Kona 6061 Aluminum Butted 160mm Travel |
| Sizes | S, M, L, XL |

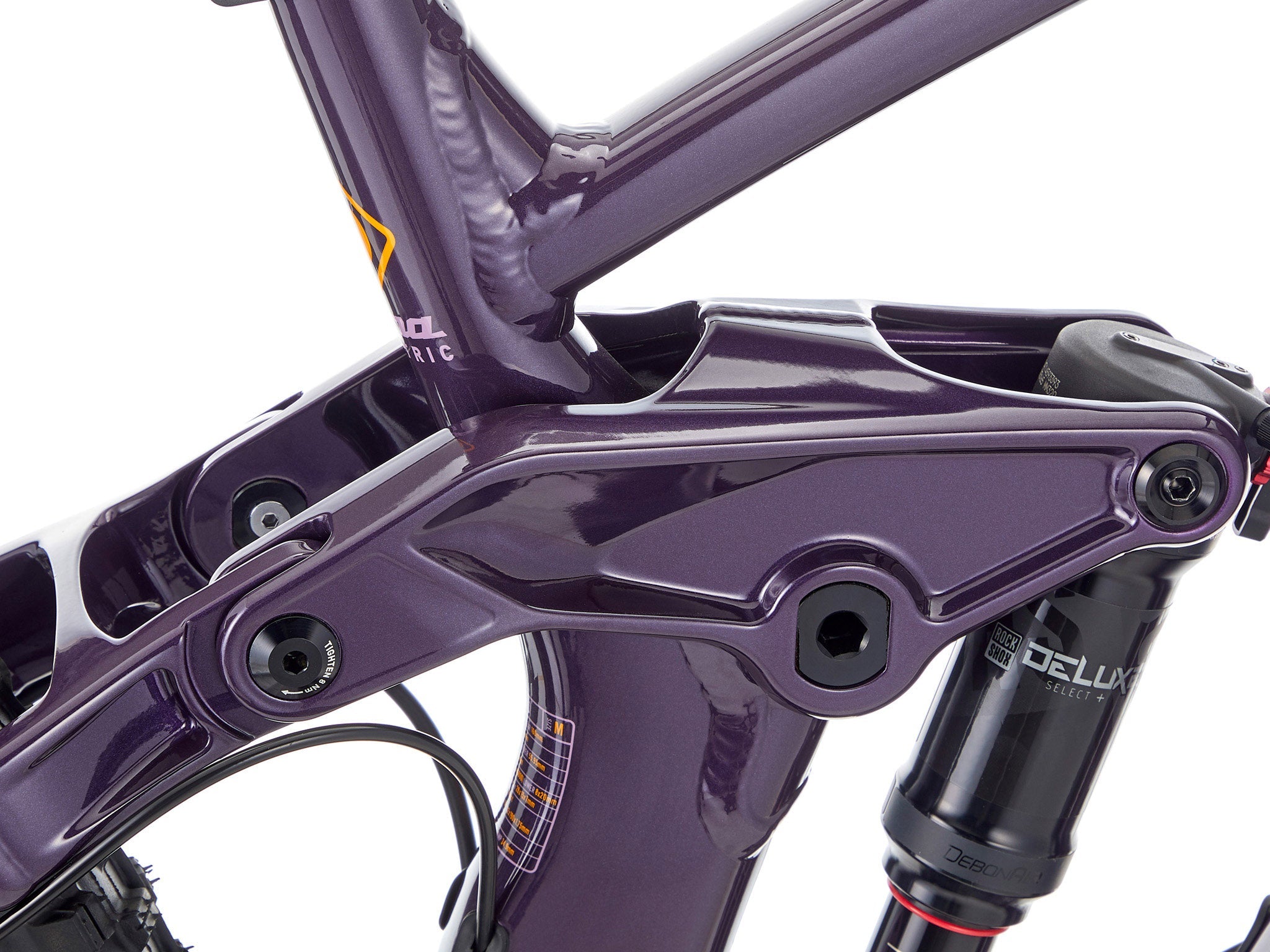

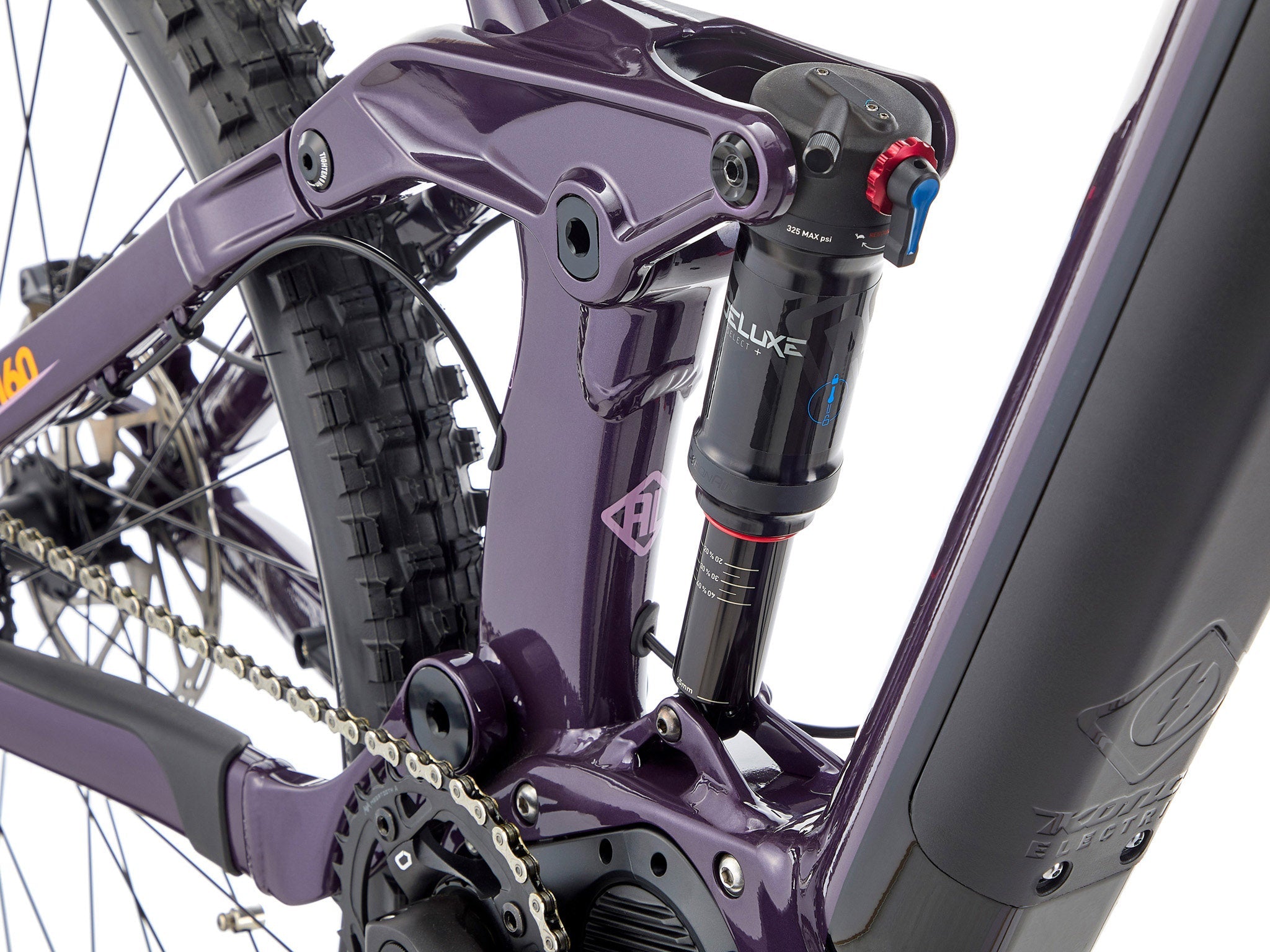

| Rear Shock | RockShox Deluxe Select + Trunnion |
| Fork | RockShox 35 Gold RL DebonAir 160mm Tapered 110 Spacing |
| Crankarms | Shimano E8000 |
| Chainrings | 34t |
| B/B | n/a |
| Pedals | n/a |
| Chain | KMC X10 |
| Cassette | Microshift Advent X 11-48t 10spd |
| Chainguide | n/a |
| F/D | n/a |
| R/D | Microshift Advent X |
| Shifters | Microshift Advent X |

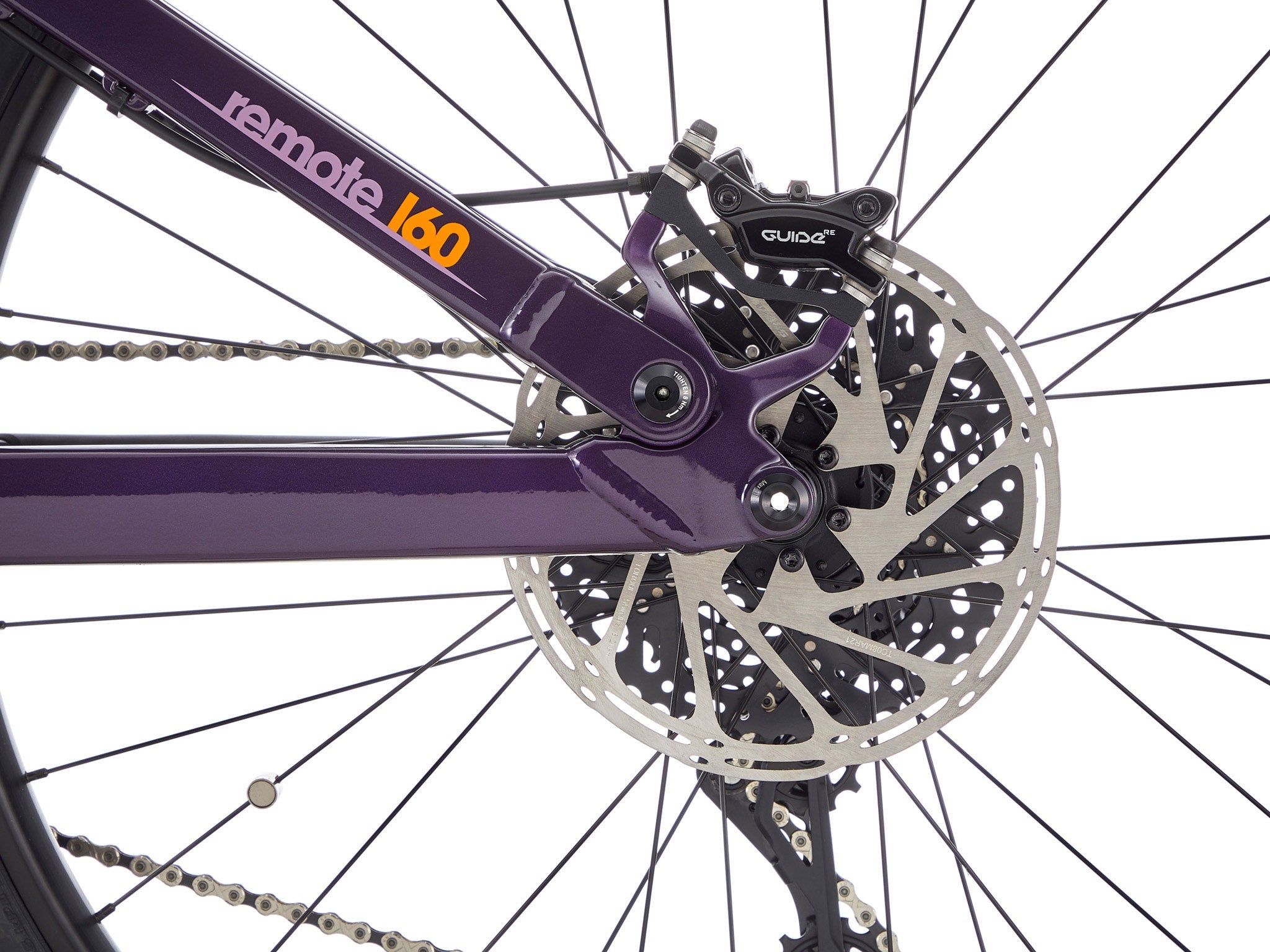

| Brake Calipers | TRP Slate EVO |
| Front Brake Rotor | TRP R203S01E 203mm |
| Rear Brake Rotor | TRP R203S01E 203mm |
| Brake Levers | TRP Slate EVO |
| Headset | FSA No.57E |
| Handlebar | Kona XC/BC 35 |
| Stem | Kona XC/BC 35 |
| Seatpost | TranzX Dropper Internal 31.6mm |
| Seat Clamp | Kona Clamp |
| Grips | Kona Key Grip |
| Saddle | WTB Volt |
| Front Hub | Formula 110x15mm |
| Rear Hub | Formula 157x12mm |
| Spokes | Stainless Black 14g |
| Rims | WTB ST i30 TCS 2.0 |
| Front Tire | Maxxis Minion DHF EXO+ TR 3C 29x2.5" WT |
| Rear Tire | Maxxis Minion DHR II EXO+ TR 3C 29x2.5" WT |

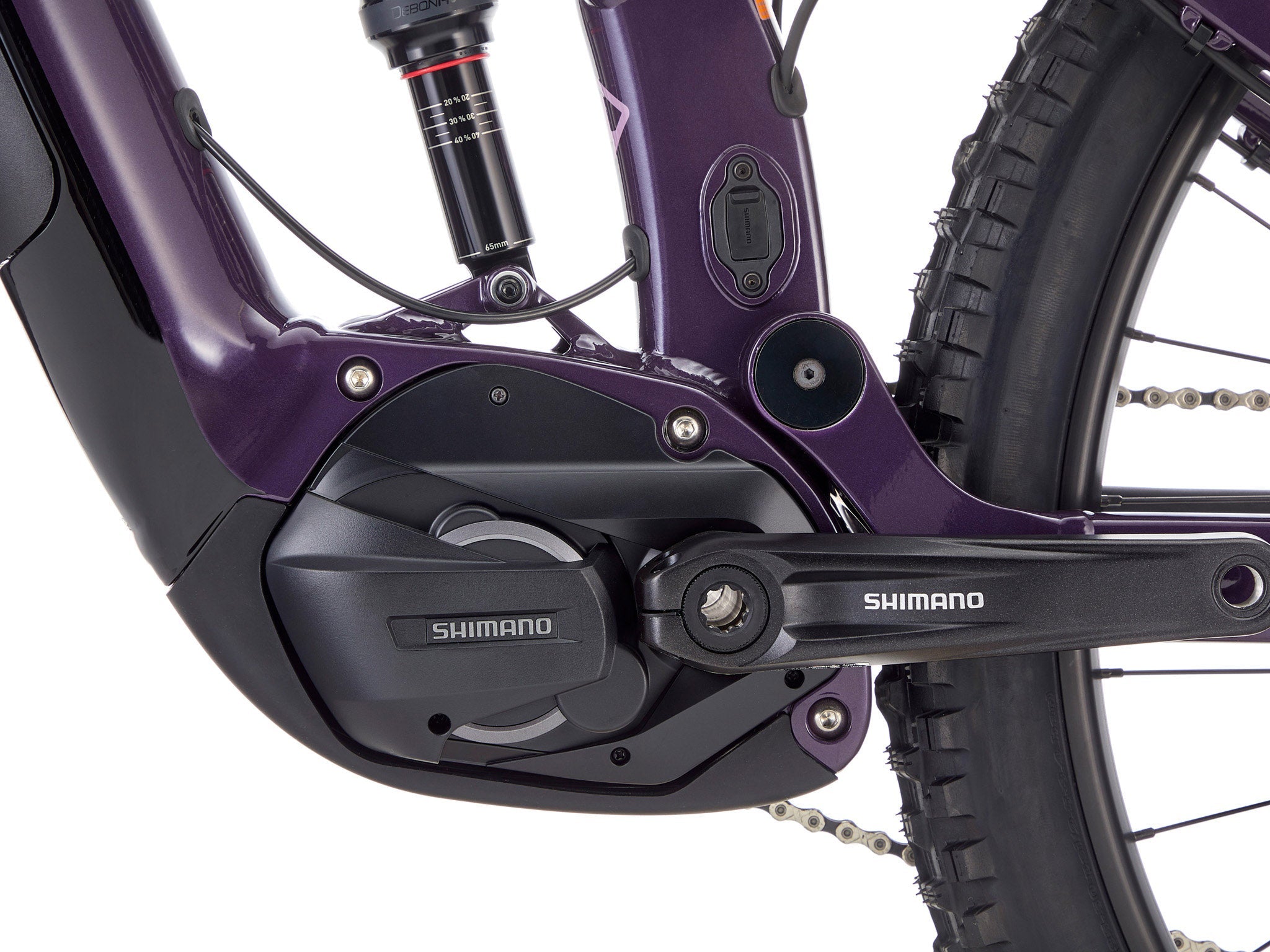

| Drive Unit | Shimano E7000 20MPH |

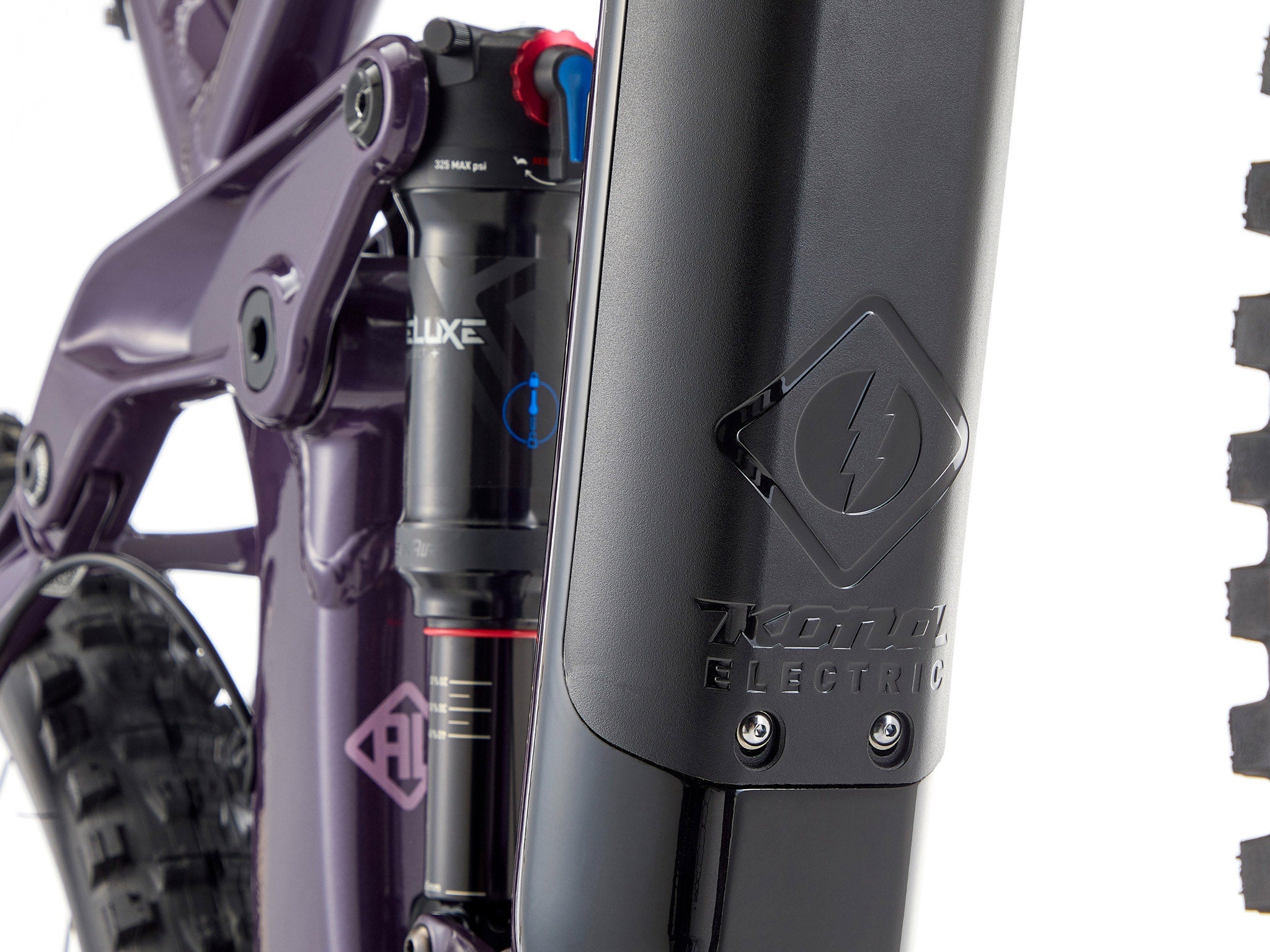

| Battery | Shimano 504Wh |

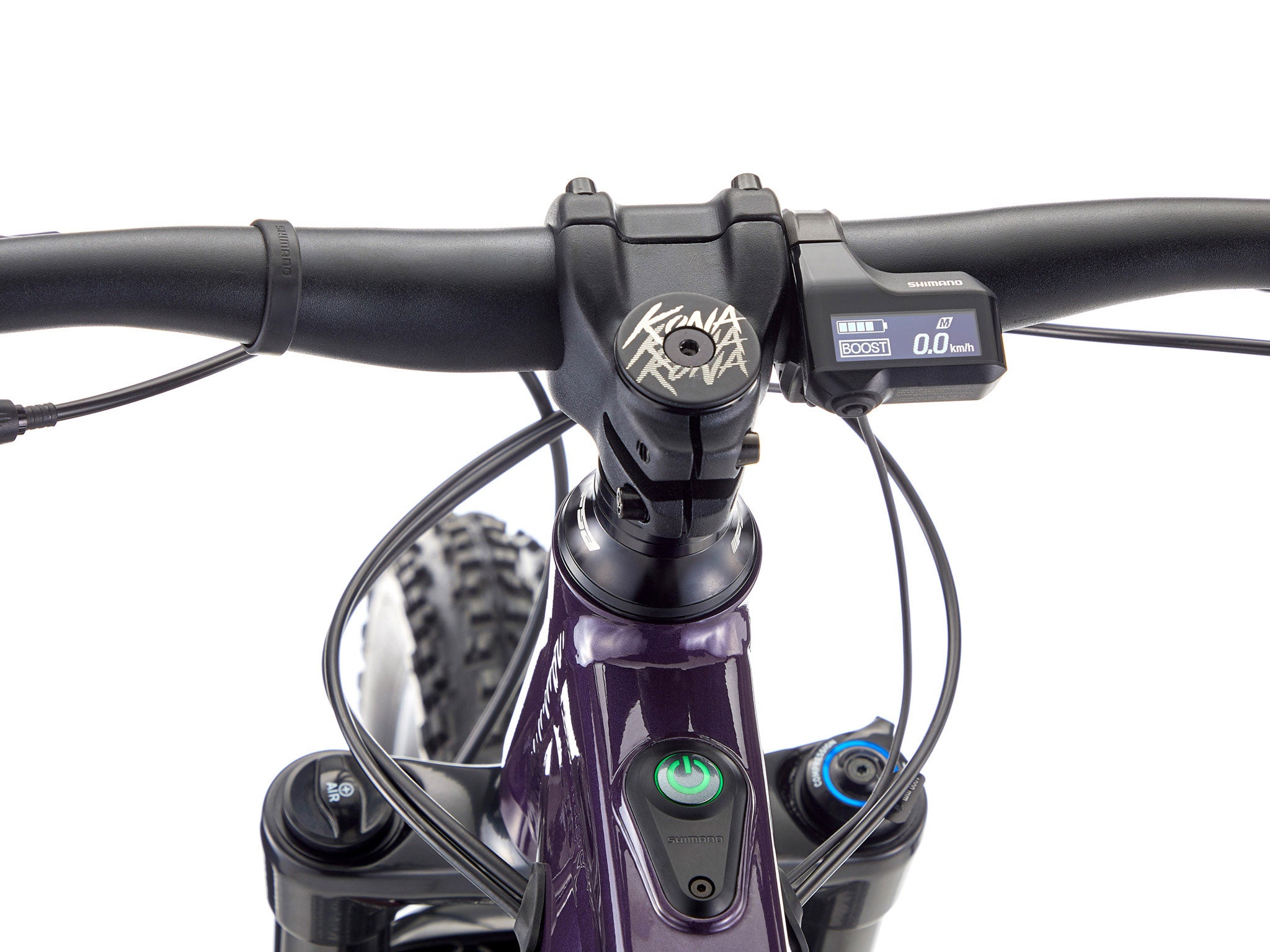

| Display | Shimano SC-E7000 Display |
| Charger | Shimano STEPS 2A |
| Paint Color | Gloss Metallic Grape w/ Furnace Fade & Purple |
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 385 | 410 | 450 | 485 |
| 2 | TT Length | 582 | 609 | 638 | 677 |
| 3 | Reach | 417 | 442 | 467 | 502 |
| 4 | Stack | 620 | 625 | 635 | 644 |
| 5 | Standover | 752 | 767 | 765 | 778 |
| 6 | HT Angle | 64 | 64 | 64 | 64 |
| 7 | HT Length | 115 | 120 | 130 | 140 |
| 8 | ST Angle | 75.1 | 75 | 74.9 | 74.8 |
| 9 | CS Length | 435 | 435 | 435 | 435 |
| 10 | BB Drop | 25 | 25 | 25 | 25 |
| 11 | BB Height | 350 | 350 | 350 | 350 |
| 12 | Wheelbase | 1198 | 1225 | 1254 | 1294 |
| 13 | Front Center | 761 | 788 | 818 | 857 |
| 14 | Fork Length | 571 | 571 | 571 | 571 |
| 15 | Fork Offset | 51 | 51 | 51 | 51 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| HEIGHT/INCHES | HEIGHT/METRIC | INSEAM/INCHES | INSEAM/METRIC | Rove/Jake | Libre | Sutra | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| HEIGHT/INCHES | HEIGHT/METRIC | INSEAM/INCHES | INSEAM/METRIC | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
Call2Recycle FAQ
Does Kona participate in any ebike battery recycling programs?
Yep! Kona has partnered with Call2Recycle to take care of all battery recycling at the end of their life.
Whatis Call2Recycle Canada?
Call2Recycle is Canada’s largestconsumer battery collection and recycling organization, managing a network of thousands of public collection sites through “Recycle Your Batteries, Canada!”, its household and e-bike battery collection and recycling program. Call2recycle operates official battery recycling programs in seven Canadian provinces (as of September 2024) and manages voluntary programs in all other provinces and territories. Since its inception in 1997, Call2Recycle has diverted over 50 million kilograms of batteries from Canadian landfills.
Are there any fees associated with this service?
Yes, the structure is set up so that the eco fee is passed along the chain to the end consumer. These fees all ensure the program runs effectively. Here’s how it works:
- As the importer of record, Kona will remit the fees to Call2Recycle Canada. It’s $10 per electric bike or aftermarket battery.
- Kona will pass the eco fee to the dealer when e-bikes or batteries are shipped.
- The consumer buying the bike or battery will pay the dealer the fee.
- This fee ensures that when your battery reaches the end of its life, it will be safely recycled for no additional fee.
Do I also need to pay a fee when the battery is ready to be recycled?
Nope. The fee you paid at the time of purchase is the only fee you’ll ever need to pay to recycle your battery.
Will my dealer take the battery when I can no longer use it?
This will vary from dealer to dealer as it’s up to them if they want to sign up to be a battery collection site.
I’m a dealer and want to become a collection site. How do I sign up?
Great! The more collection sites the better! It costs nothing to become a collection site. Find out more info here.
I’m a consumer and my local dealer isn’t a collection site. Where can I recycle my batteries?
We will do our best to encourage our dealer network to participate in the program, but if they haven’t had time or choose not to participate, please use the locator to find your nearest location.
Why should I recycle my batteries?
Battery recycling is essential to help protect our environment and better manage our waste.
Used batteries should NEVER be thrown away in the garbage or even in the recycling bin. They include metals and chemicals that can be harmful to our environment if we just throw them away. When discarded batteries end up in landfills, they can harm the environment and worsen Canada’s Greenhouse Gas (GHG) emissions.
A “dead” battery still holds a residual charge and poses a safety risk if not disposed of properly.
Batteries that are recycled properly are sent for processing, where valuable materials like metal alloys are retrieved and used to produce new products like silverware,
bikes and golf clubs – contributing to a circular economy.
