Process 153 CR
Not finding what you want here?
Contact your local Kona Dealer.
Process 153 CR
Sale price$6,999.00 CAD
Regular price$0.00 CAD (/)

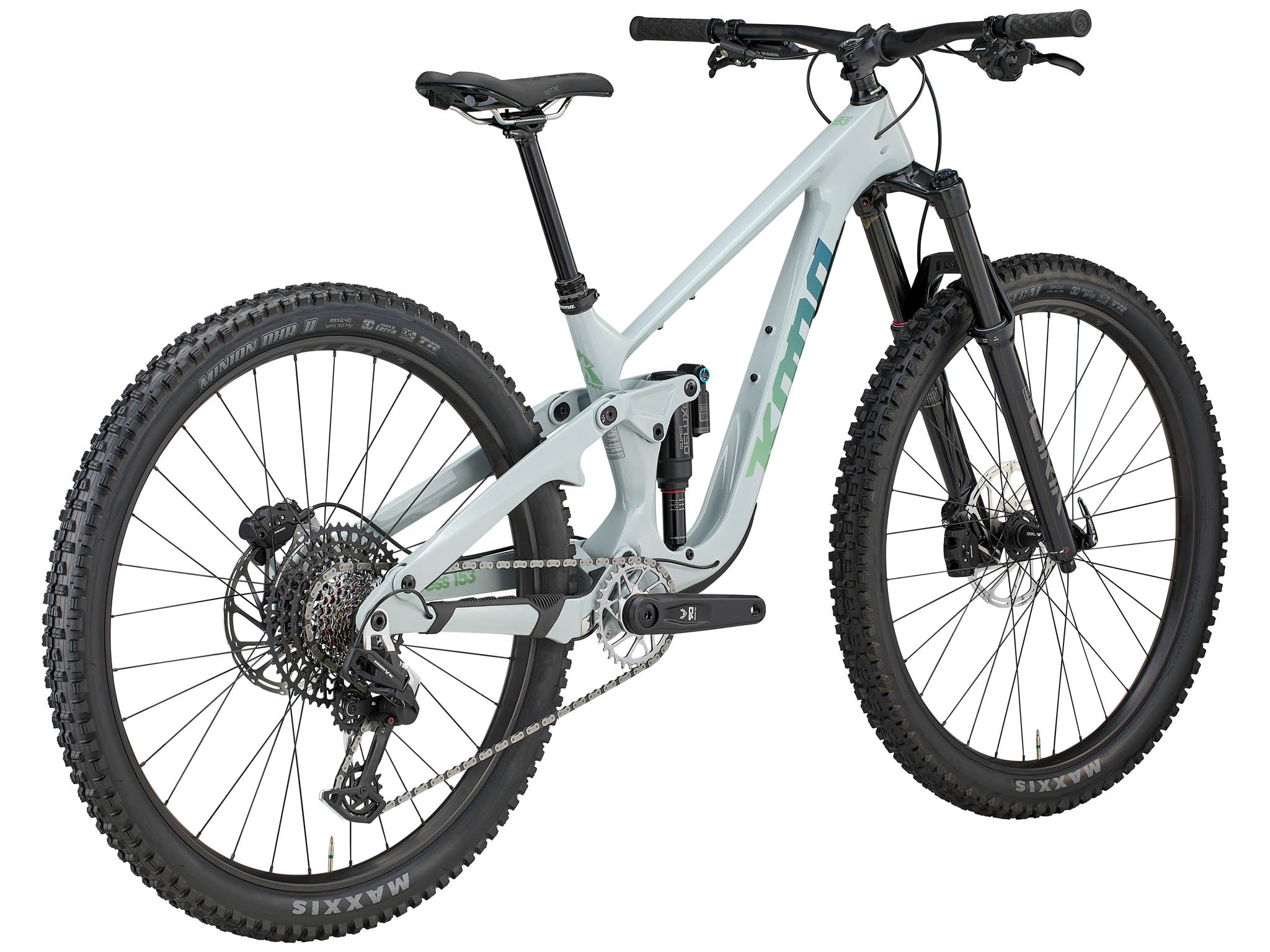

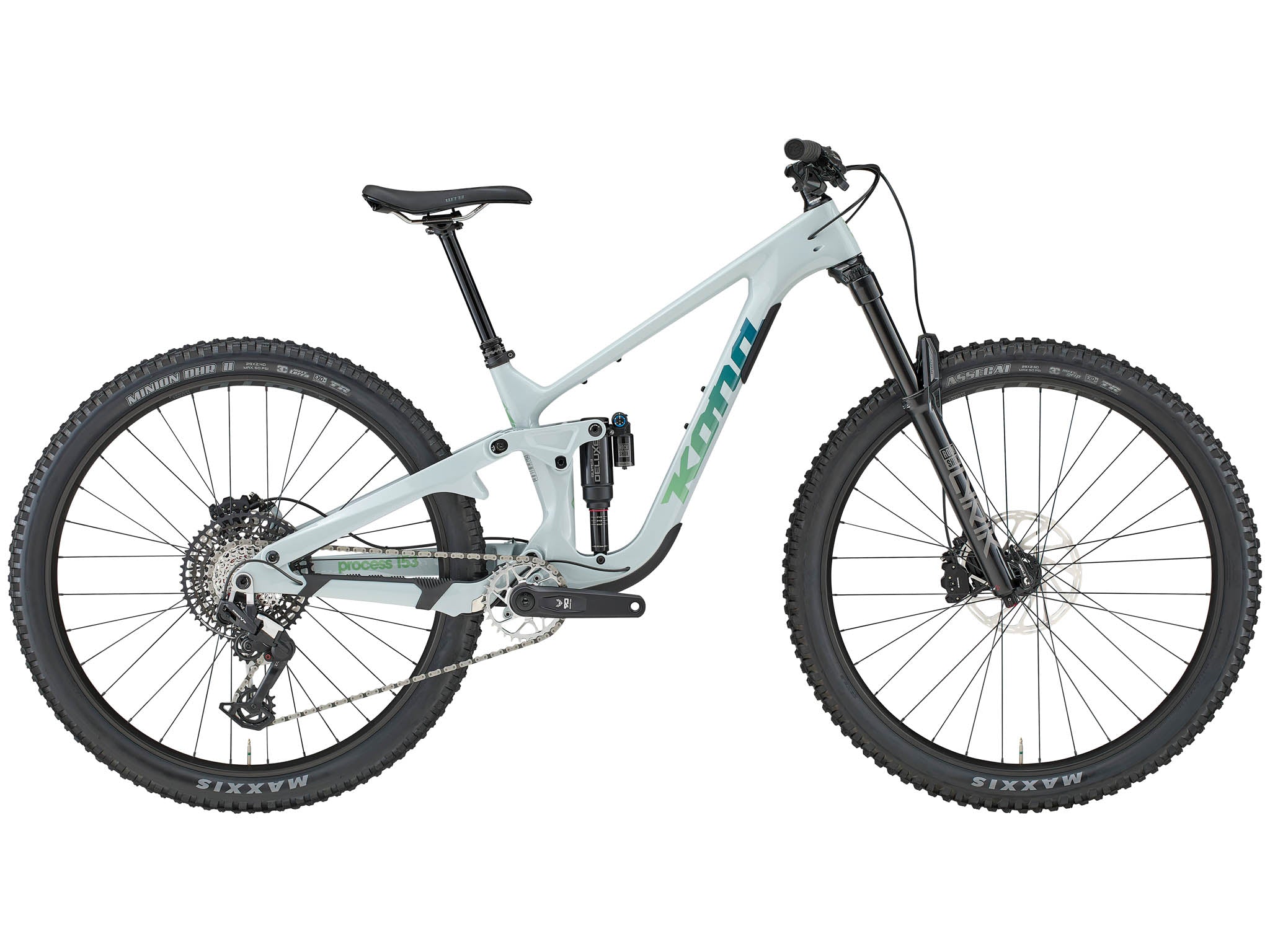

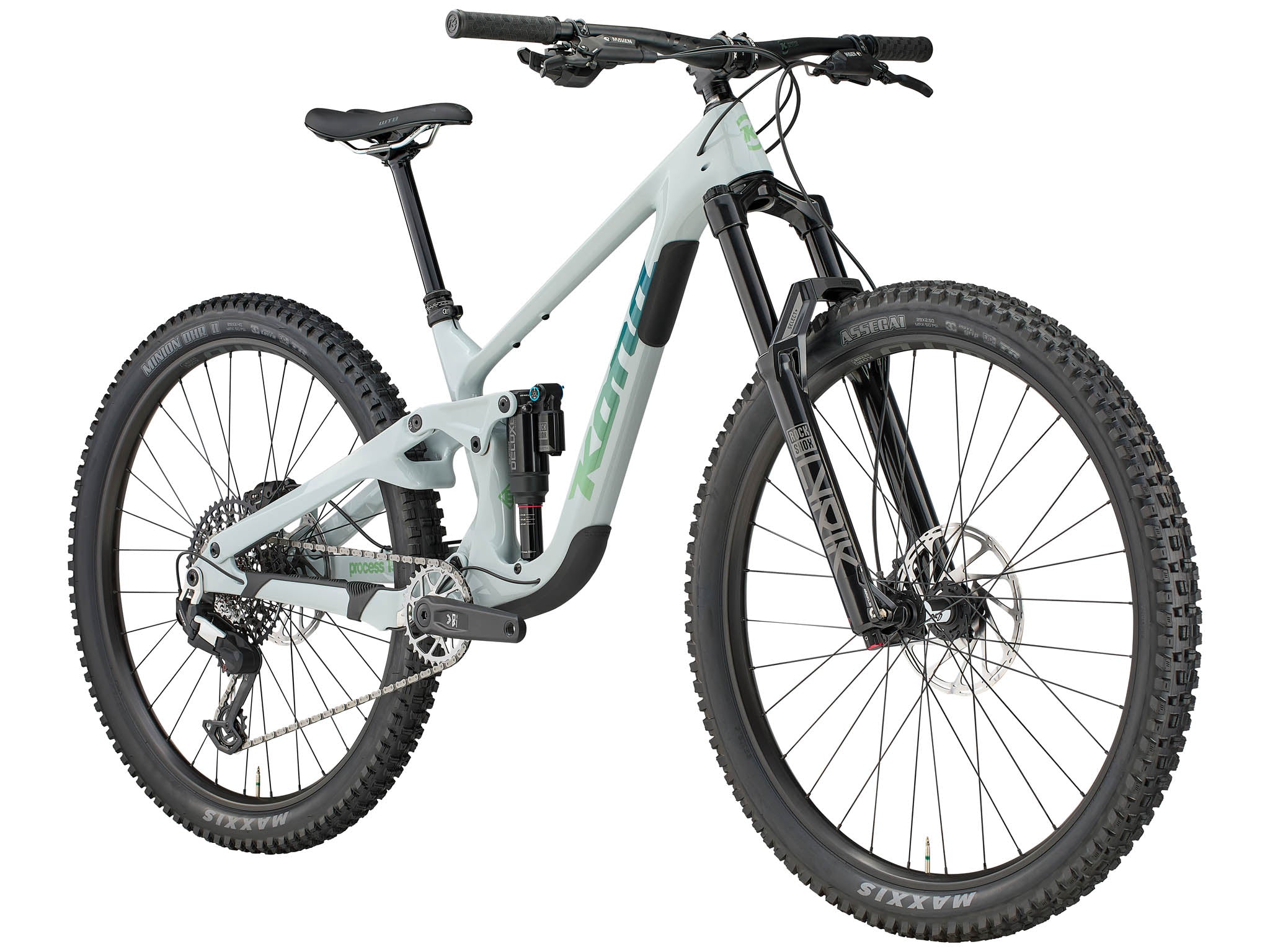

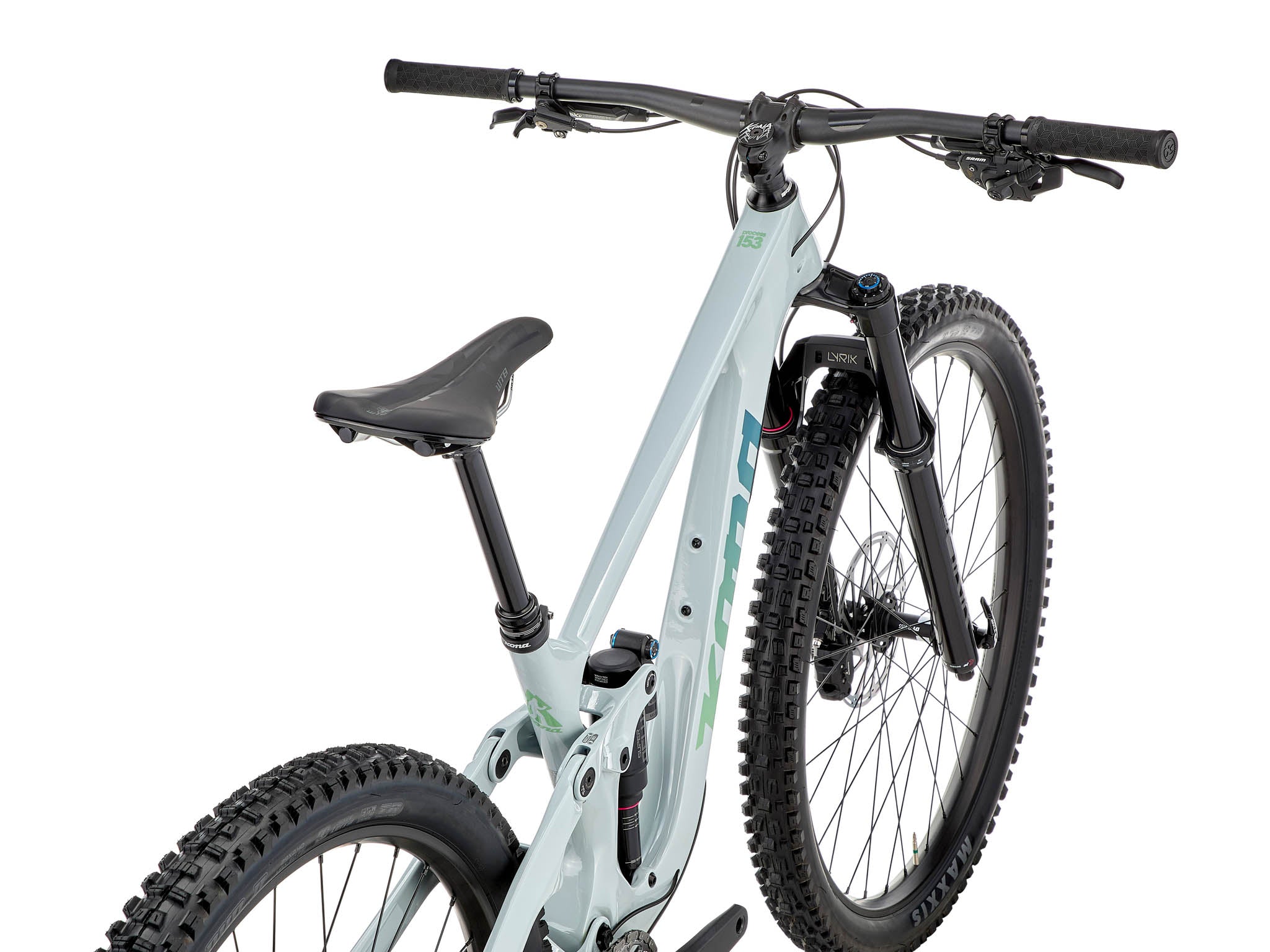

The Process 153 CR is the all-mountain bike that combines uncompromising performance with legendary toughness. This 160mm / 153mm travel carbon mountain bike is built to climb efficiently, charge technical terrain, and deliver Nirvana-level peace of mind with Valhalla-level confidence when the trail points down. Efficient on the climbs. An absolute beast on the descents. Just like you.
SPECS & GEOMETRY
SPECIFICATIONS
| FRAME | Kona Carbon 153mm Travel |
| SIZES | S, M, L, XL |

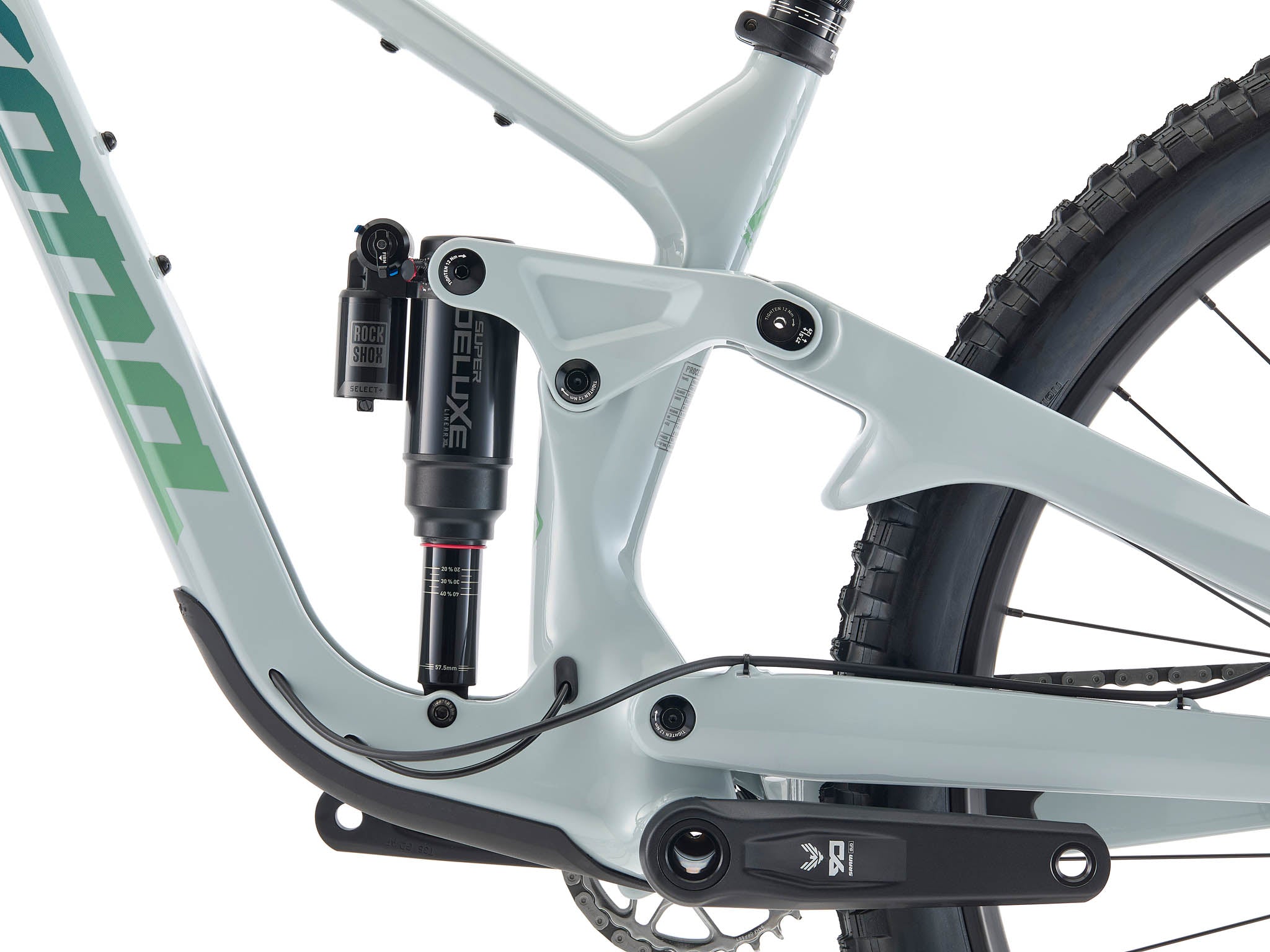

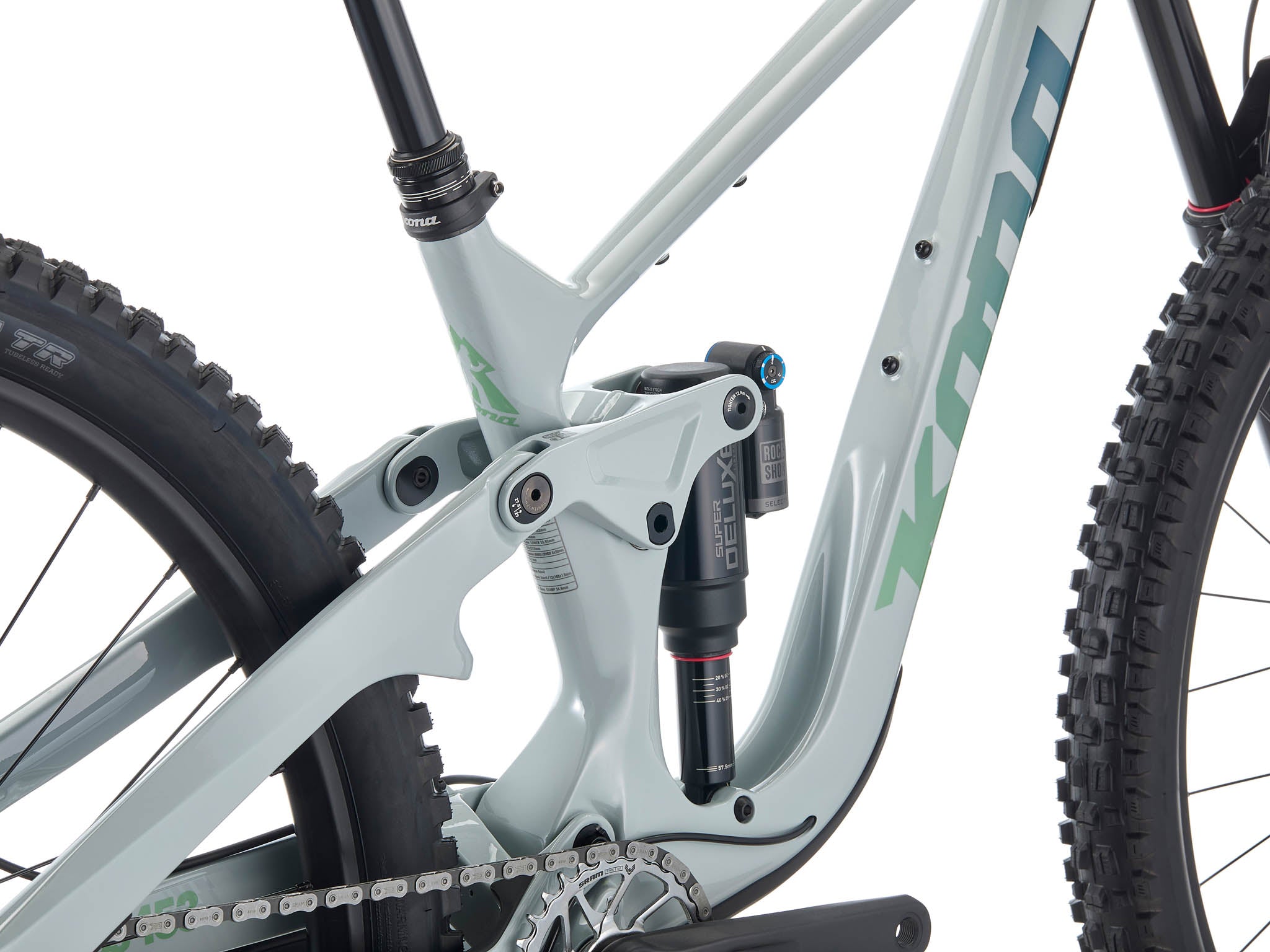

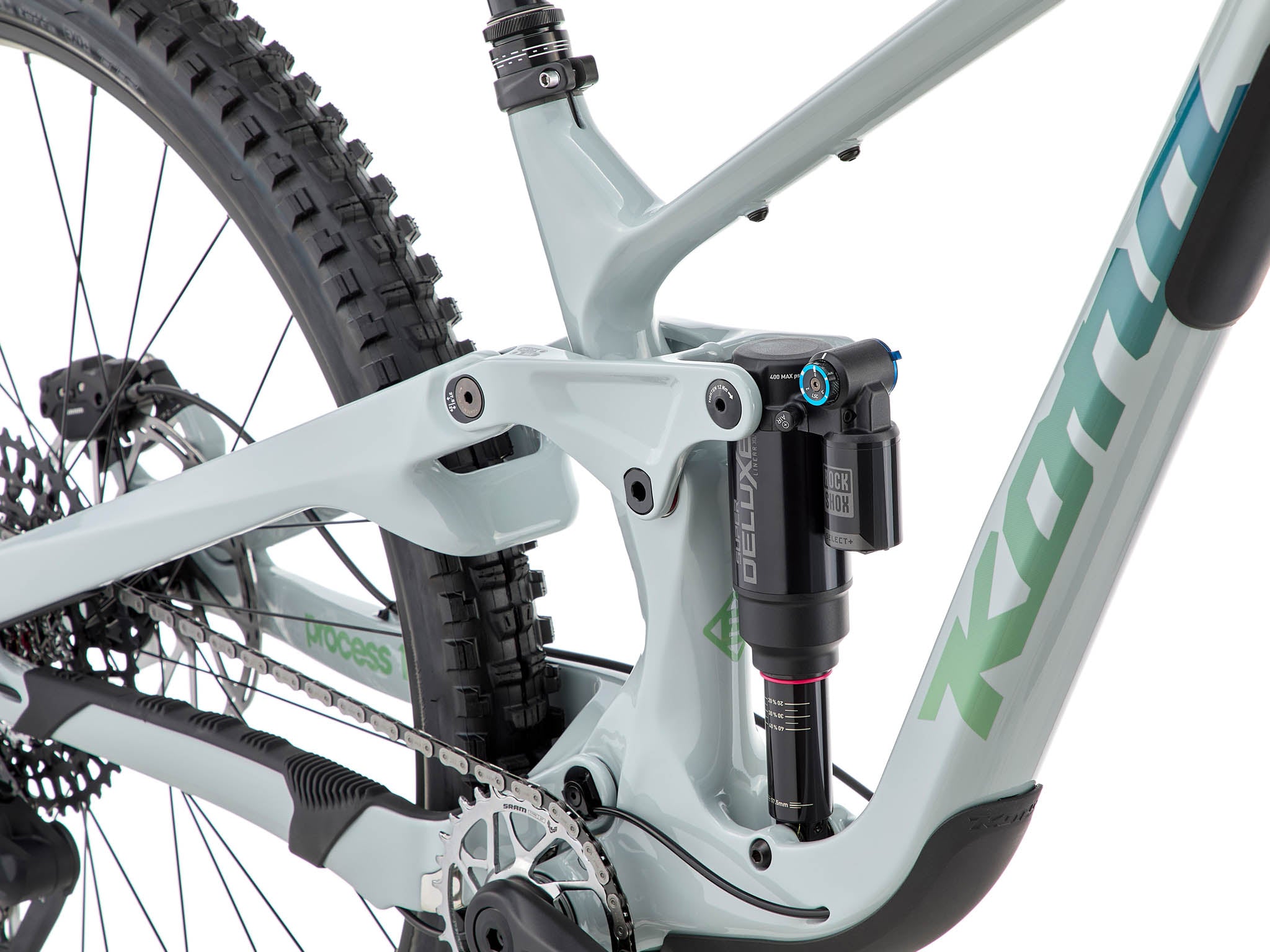

| REAR SHOCK | Rockshox Super Deluxe Select+ 205x57.5mm |
| FORK | RockShox Lyrik Select+ 160mm 29" |
| CRANKSET | SRAM Eagle 90 DUB 32t / Length S 165mm / M-XL 170mm |
| BOTTOM BRACKET | SRAM DUB PF92 MTB WIDE |
| PEDALS | n/a |
| CHAIN | SRAM Eagle 70 T-Type |
| CASSETTE | SRAM XS 1275 10-52t 12spd XD |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | SRAM Eagle 90 Transmission |
| SHIFTERS | SRAM Eagle 90 Transmission |
| BRAKE CALIPERS | SRAM Maven Base |
| FRONT BRAKE ROTOR | SRAM Centerline 200mm 6B |
| REAR BRAKE ROTOR | SRAM Centerline 200mm 6B |
| BRAKE LEVERS | SRAM Maven Base |
| HEADSET | FSA Orbit No.57 ZS44/ZS56 |

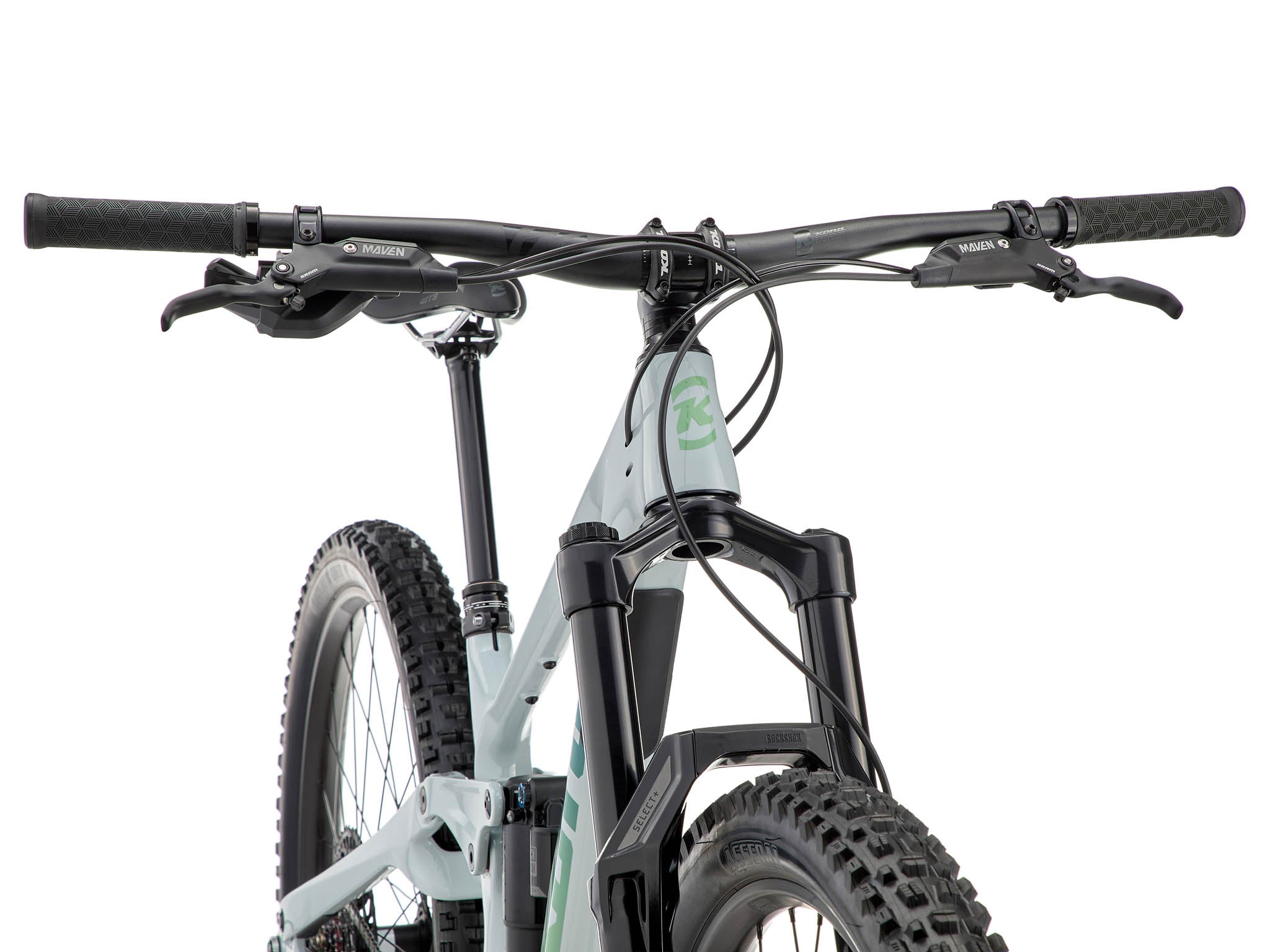

| HANDLEBAR | Kona 35mm / Back 8º / Rise 18mm / Width S 760mm / M 780mm / L-XL 800mm |
| STEM | Kona 35mm / Rise 0º / Length 40mm |
| SEATPOST | TranzX Dropper +RAD Internal 31.6mm / Length S 150mm / M 170mm / L 200mm / XL 230mm |
| SEAT CLAMP | Kona Clamp 34.9mm |
| GRIPS | Kona Key Grip Lock-on |
| SADDLE | WTB Volt SL Fusion |
| FRONT HUB | DT Swiss 350 15x110mm |
| REAR HUB | DT Swiss 350 12x148mm XD |
| SPOKES | Stainless 2.0/1.8mm Black |
| RIMS | WTB KOM Trail i30 TCS |
| FRONT TIRE | Maxxis Assegai 29x2.5" WT EXO+ / TR / 3C MaxxGrip |
| REAR TIRE | Maxxis DHR II 29x2.4" WT EXO+ / TR / 3C (27.5x2.4" WT size S) |
| PAINT COLOR | Gloss Concrete w/ Greenstone Fade & Spot Matte Decals |
All specifications are subject to change without notice.
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 380 | 380 | 420 | 450 |
| 2 | TT Length | 574 | 599 | 628 | 667 |
| 3 | Reach | 430 | 455 | 480 | 515 |
| 4 | Stack | 615 | 615 | 625 | 635 |
| 5 | Standover | 690 | 700 | 710 | 720 |
| 6 | HT Angle | 64.5 | 64.5 | 64.5 | 64.5 |
| 7 | HT Length | 94 | 94 | 105 | 116 |
| 8 | ST Angle | 76.9 | 76.9 | 76.7 | 76.6 |
| 9 | CS Length | 435 | 435 | 435 | 435 |
| 10 | BB Drop | 20 | 30 | 30 | 30 |
| 11 | BB Height | 345 | 345 | 345 | 345 |
| 12 | Wheelbase | 1190 | 1215 | 1244 | 1284 |
| 13 | Front Center | 756 | 781 | 811 | 851 |
| 14 | Fork Length | 571 | 571 | 571 | 571 |
| 15 | Fork Offset | 44 | 44 | 44 | 44 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
